20 HP MOTOR TOSHIBA 3520 RPM 460 V FRAME 258T

 TOSHIBA 20 HP MOTOR

MODEL 0202XSSB41A-P

EQP Global 840 severe-duty

3520 RPM 380/480 V 24 AMP

FRAME 258T

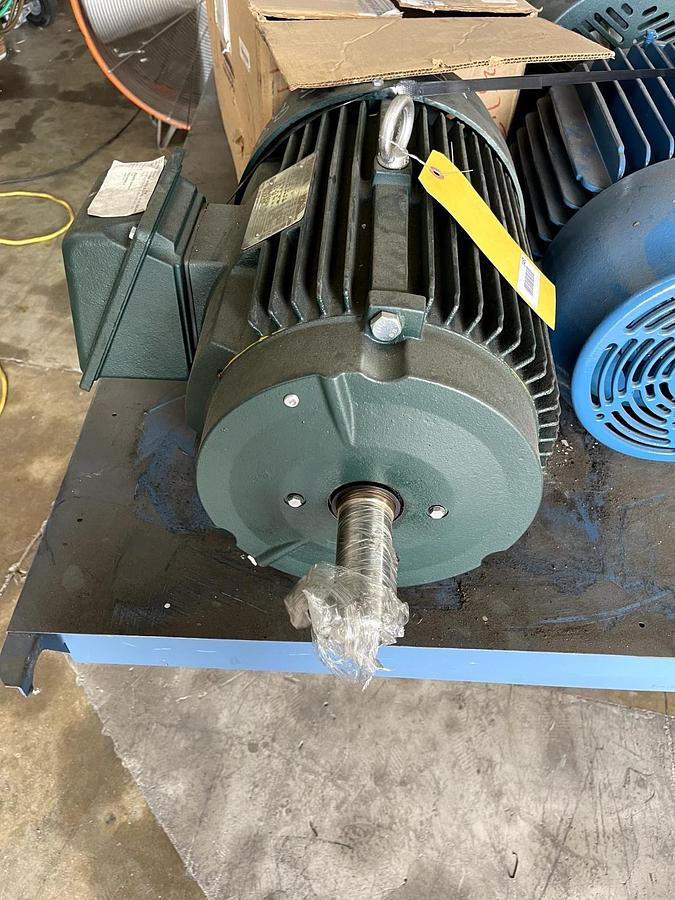

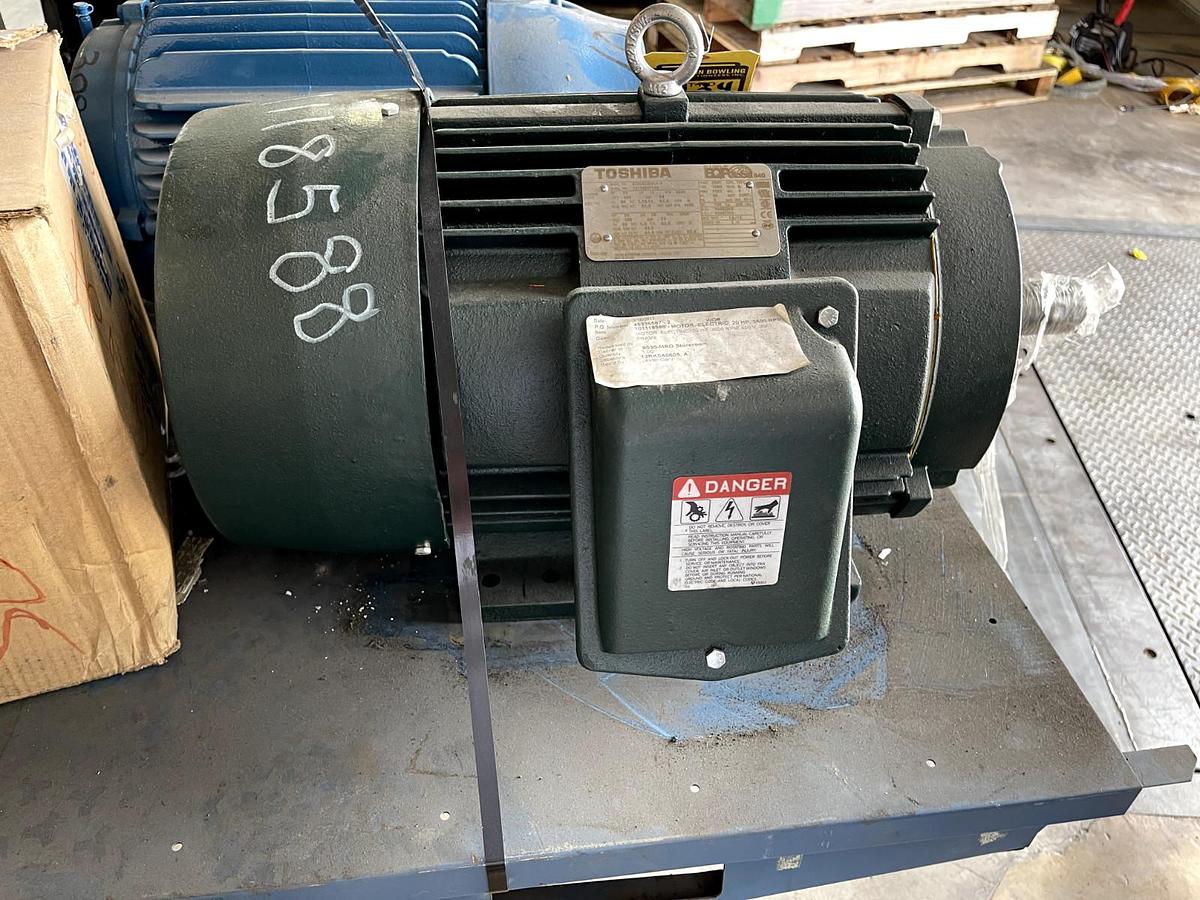

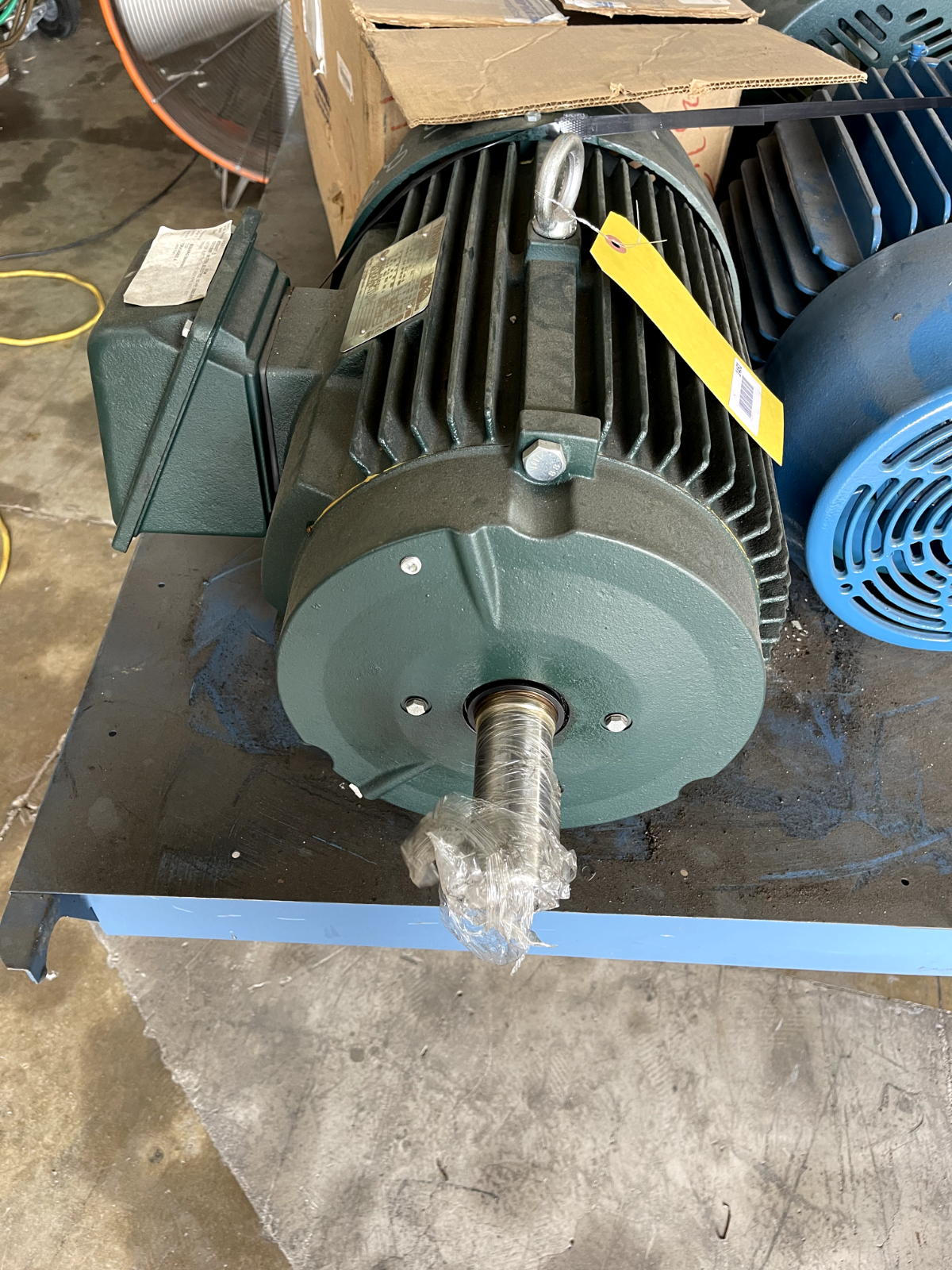

Toshiba EQP Global 840 Severe-Duty Motor (Model: 0202XSSB41A-P) is a high-performance, three-phase AC industrial motor designed specifically for harsh operating environments.

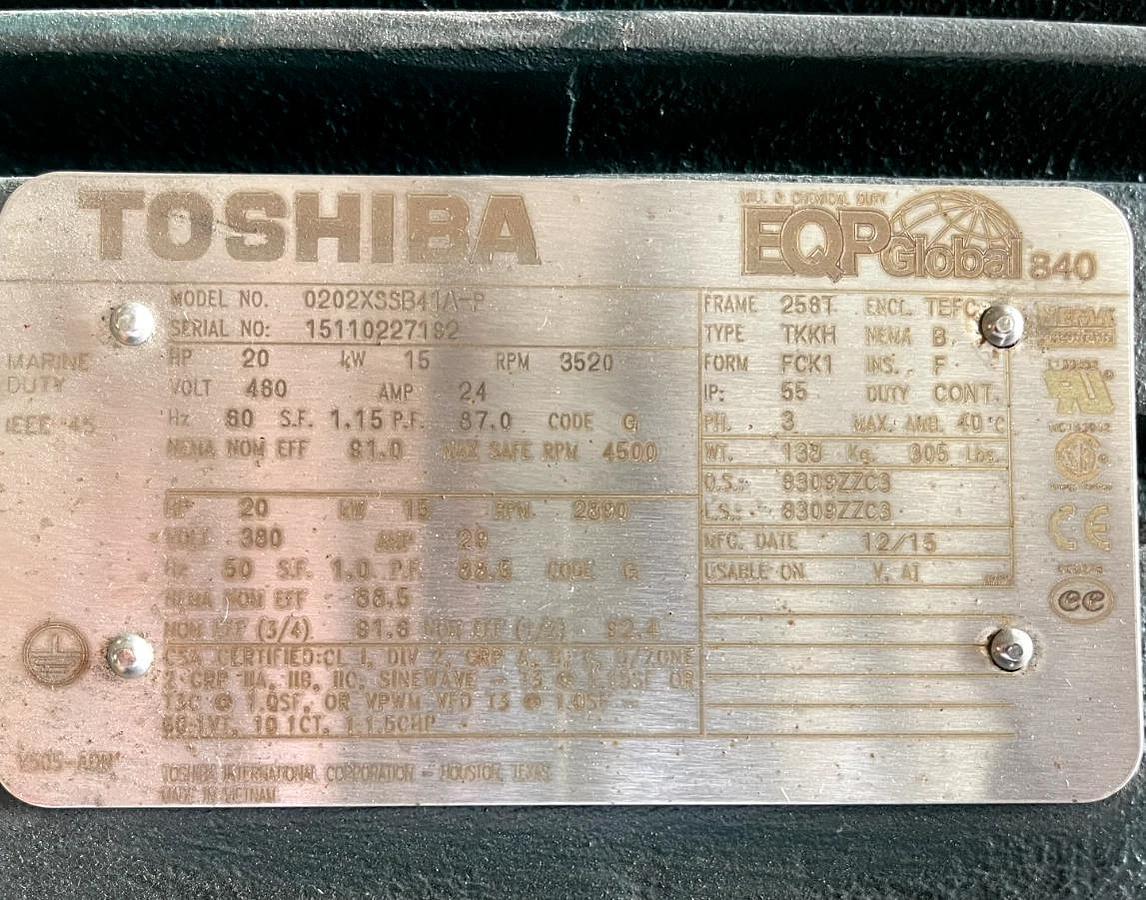

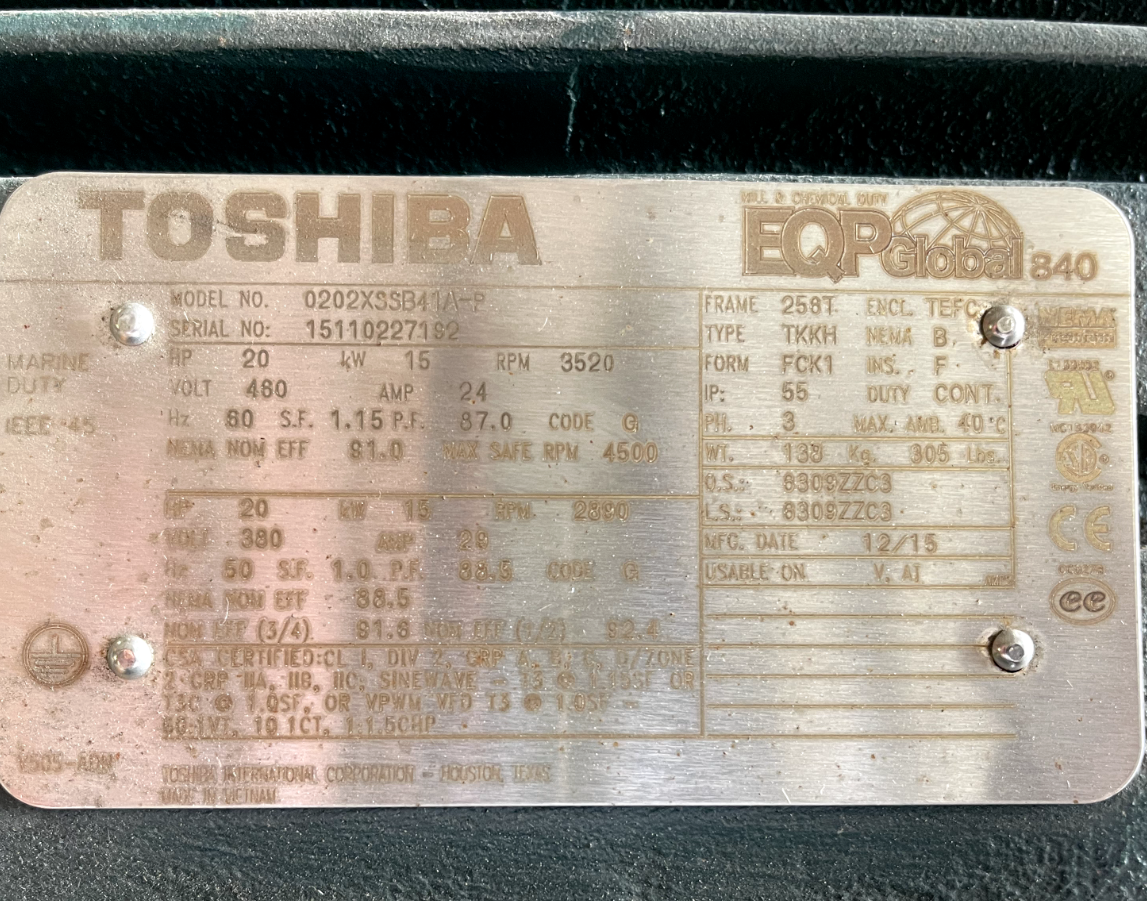

There are two critical details on your nameplate transcription that differ from the manufacturer's standard specifications for this specific model number:

• The Amperage: For a 20 HP motor running at 460V/480V full-load current is typically around 24 Amps.
• Factory Specifications for Model 0202XSSB41A-PHorsepower: 20 HP (14.9 kW)
• Speed: 3600 RPM Nominal (3520 RPM Full Load, 2-Pole)
• Voltage: 380/480 V (Nominal 480 V compatible)
• Full Load Amps: 24.0 A @ 460 V
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled), IP55 rated protection
• Frame Size: 258T (Rigid base, foot mounted)
• Service Factor: 1.15
• Efficiency: NEMA Premium Efficiency
• Inverter Duty: Rated for VFD usage (10:1 Constant Torque / 60:1 Variable Torque
• Key Engineering FeaturesSevere-Duty Environment Ready: Tailored for the petrochemical, pulp & paper, mill, and chemical p
• Rugged Construction: Features a complete cast iron construction including the frame, brackets, conduit box, and fan cover to maximize structural stability.
• Advanced Insulation: Built with a Class F insulation system utilizing Class H varnish and magnet wire, enabling excellent thermal resilience and longer insulation life under high heat conditions.
• Oversized Bearings: Equipped with oversized 300-series ball bearings on both the drive and non-drive ends to extend operational lifespan.

The Toshiba model 0202XSSB41A-P is a 20 HP motor engineered for demanding industrial applications, particularly in harsh environments. It operates at 3520 RPM with a nominal voltage of 460 V, making it suitable for severe-duty use. This three-phase AC motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, providing protection against dust and moisture, with an IP55 rating. The NEMA Premium Efficiency ensures energy savings during operation. This motor boasts a robust design, constructed from cast iron for enhanced durability. It comes equipped with oversized 300-series ball bearings to extend its operational lifespan. The motor is rated for variable frequency drive (VFD) usage, supporting a 10:1 constant torque and a 60:1 variable torque ratio, making it adaptable to various machine requirements. It is important to note the motor's specifications include a 256T frame and a standard full-load current of 24 Amps at 460 V, contrary to any misprints or errors suggesting otherwise. Featuring a service factor of 1.15, this motor is designed to handle overload conditions effectively, ensuring reliable performance in industries such as petrochemical, pulp and paper, and chemical processing.
