SEW-EURODRIVE GEAR MOTOR MOD R37DRE100LC4BE5HR/ASB4/TH 1750 TO 346 RPM 5 HP

SEW-EURODRIVE GEAR MOTOR

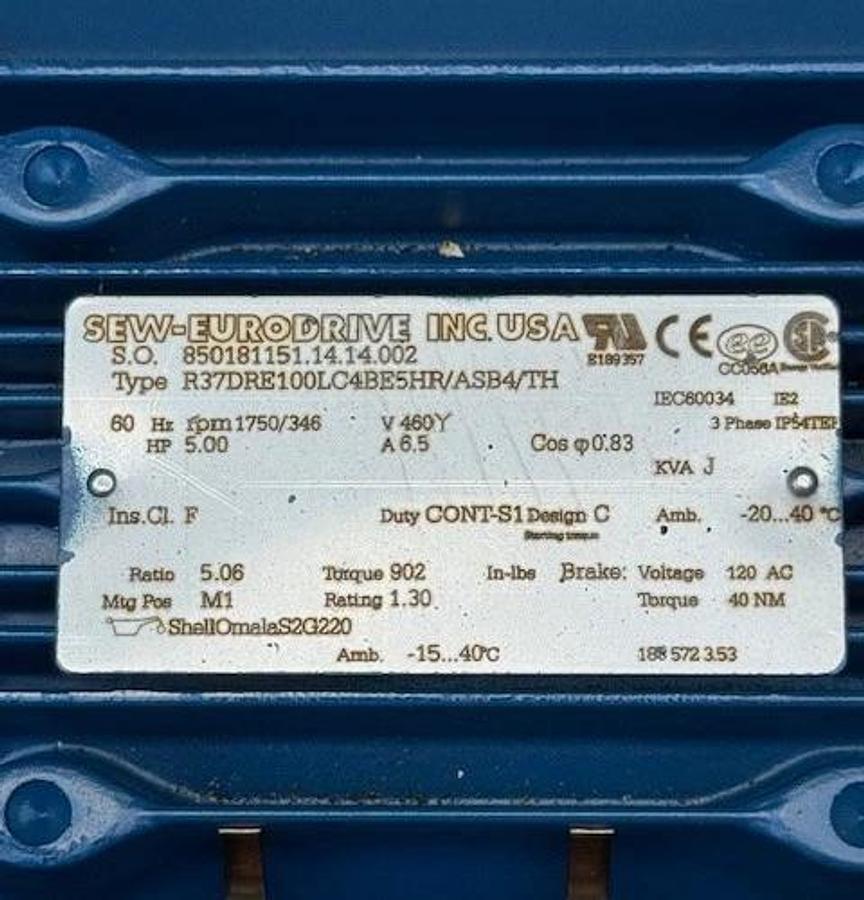

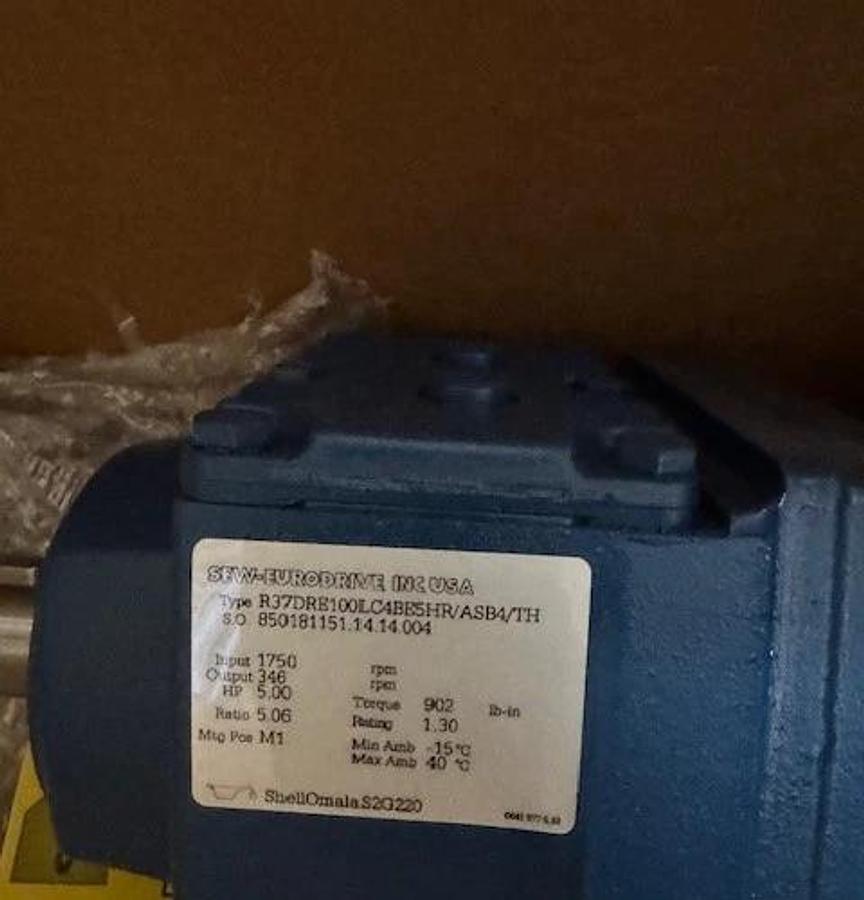

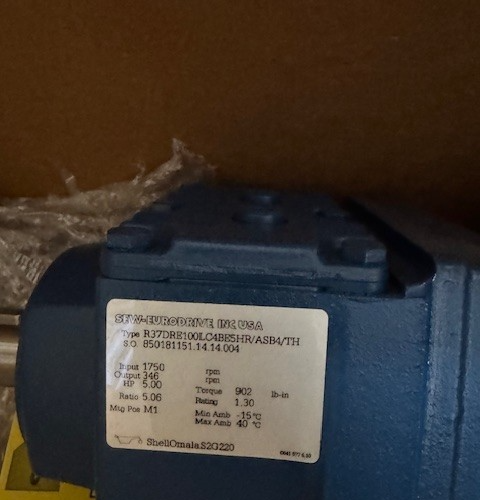

MOD R37DRE100LC4BE5HR/ASB4/TH

1750 TO 346 RPM 5 HP

TORQUE 902 IN LBS

WA 3 5 6 12 24 28 33 34 35

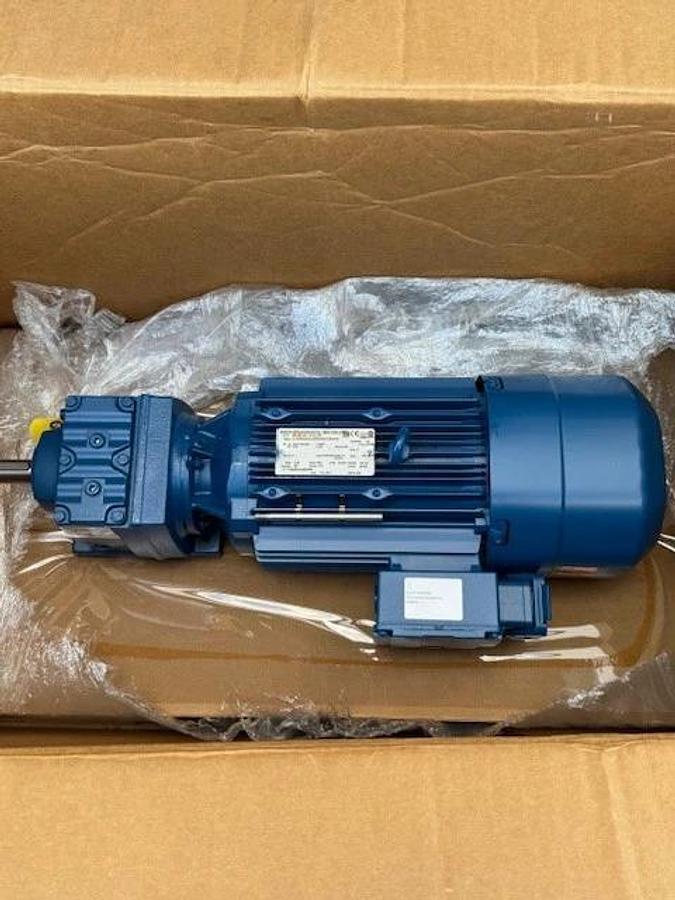

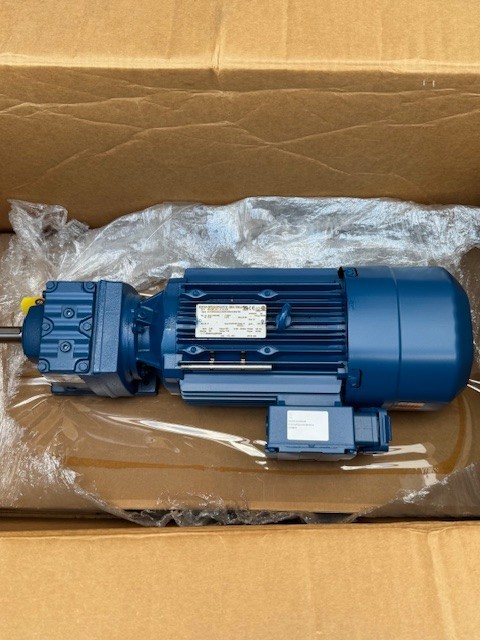

SEW-EURODRIVE R37DRE100LC4BE5HR/ASB4/TH is a 3-phase AC inline helical gear motor. It reduces an input speed of 1750 RPM down to a 346 RPM output while delivering a rugged 5 HP rating under a standard 460V power supply.

Technical Nomenclature BreakdownSEW-EURODRIVE model numbers are highly specific codes that outline every mechanical and electrical option built into the unit:

• R37: Identifies the gearbox series and size. The R designates a foot-mounted, inline helical gear unit, while 37 represents the specific case frame size.
• DRE100LC4: Represents the high-efficiency AC motor type. DRE is SEW's designation for their energy-efficient motor series, 100LC specifies the motor frame size/stator length, and 4 indicates a 4-pole configuration (giving it the baseline ~1750 RPM synchronous speed).
• BE5HR: Denotes the integrated mechanical safety brake option. BE5 means it has an attached 5 Nm capacity electromagnetic disk brake, while HR stands for a manual brake release mechanism (hand lever).
• ASB4: Identifies the specific plug-in connector system style utilized for rapid field wiring or modular component swaps.
• TH: Indicates a built-in Thermostat (positive temperature coefficient/PTC thermistor) protecting the motor windings against thermal overload or excessive heat.
• Performance & Core SpecificationsInput Speed: 1750 RPM
• Output Speed: 346 RPM
• Power Output: 5 HP (Horsepower)
• Voltage System: 460 V AC
• Enclosure Style: TEFC (Totally Enclosed Fan Cooled)
• Phase Requirement: 3-Phase

The SEW-EURODRIVE R37DRE100LC4BE5HR/ASB4/TH is an efficient and robust 3-phase AC inline helical gear motor. It significantly reduces the input speed from 1750 RPM to 346 RPM while offering a powerful 5 HP output. This motor operates on a standard 460V AC power supply, making it suitable for a variety of industrial applications. Engineered for reliability, this gear motor features an R37 gearbox series with a foot-mounted, inline helical gear unit. It includes a high-efficiency AC motor from SEW's DRE series with a 4-pole (1750 RPM synchronous speed) configuration and 100LC motor frame size. Additionally, it is equipped with a mechanical safety brake rated at 5 Nm and a manual release mechanism, ensuring safe operations. Designed with an ASB4 plug-in connector for ease of installation and a built-in thermostat for thermal protection, this gear motor is ideal for demanding environments. The TEFC (Totally Enclosed Fan Cooled) enclosure provides optimal protection, while its engineering and manufacturing in Mexico ensure high-quality standards.
