APPLETON EXPLOSION PROOF BREAKER

V63

15 AMP 480 V 3 POLE 3 PH

EB1EH3W15

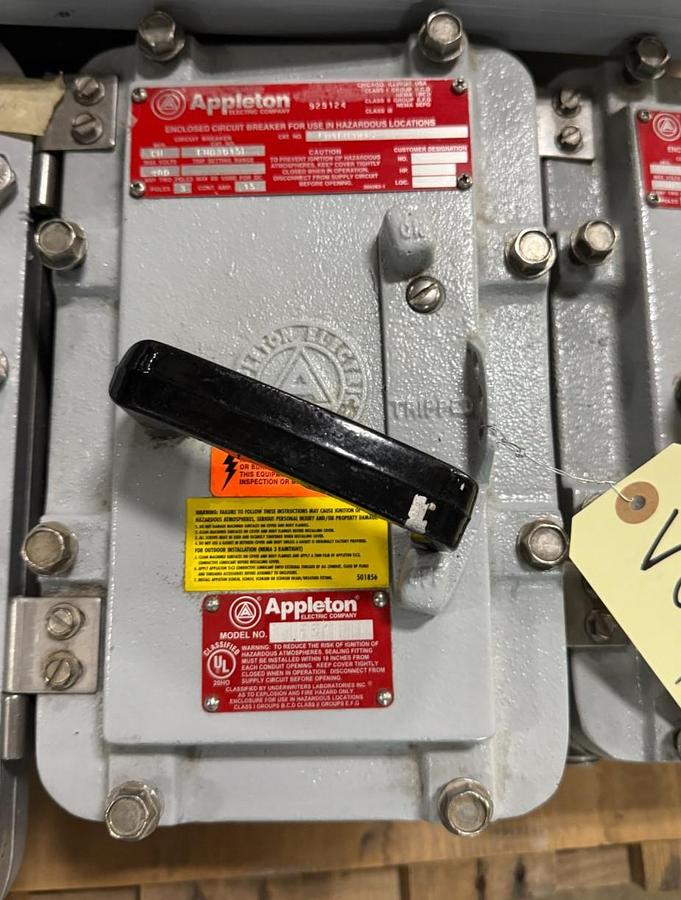

The Appleton EB1EH3W15 is a heavy-duty, explosion-proof and dust-ignition-proof enclosed circuit breaker assembly configured for low-amperage hazardous industrial environments.

• Technical SpecificationsSeries:
• Appleton EB Series (Bolted Enclosure)
• Current Rating: 15 Amps
• Voltage Rating: 480V AC (at 60 Hz) / 250V D
• Configuration: 3 Pole, 3 Phase

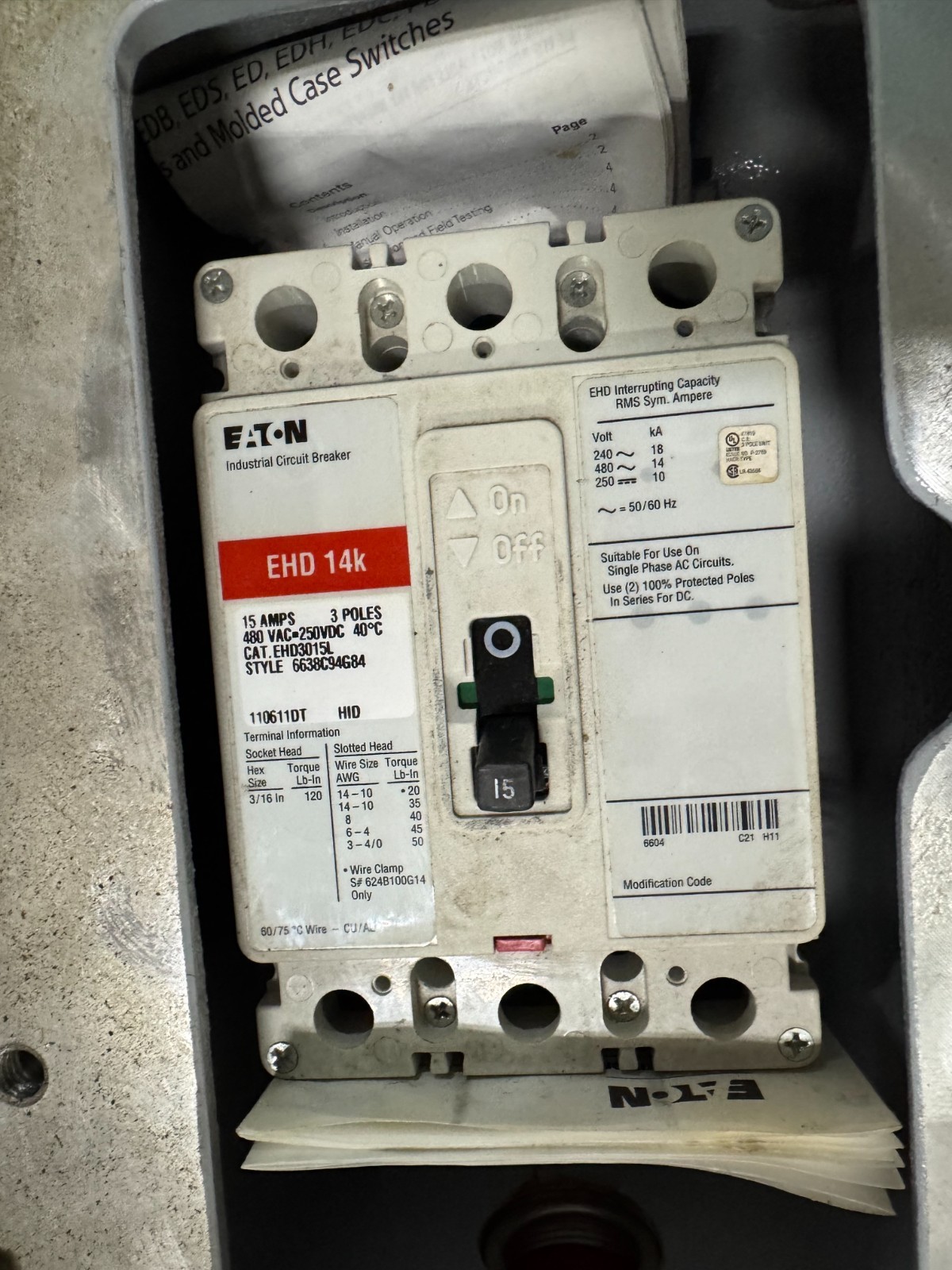

• Breaker Internal Type: Eaton Cutler-Hammer / Westinghouse EHD Frame
• Trip Type: Thermal Magnetic (provides overcurrent and short-circuit protection)

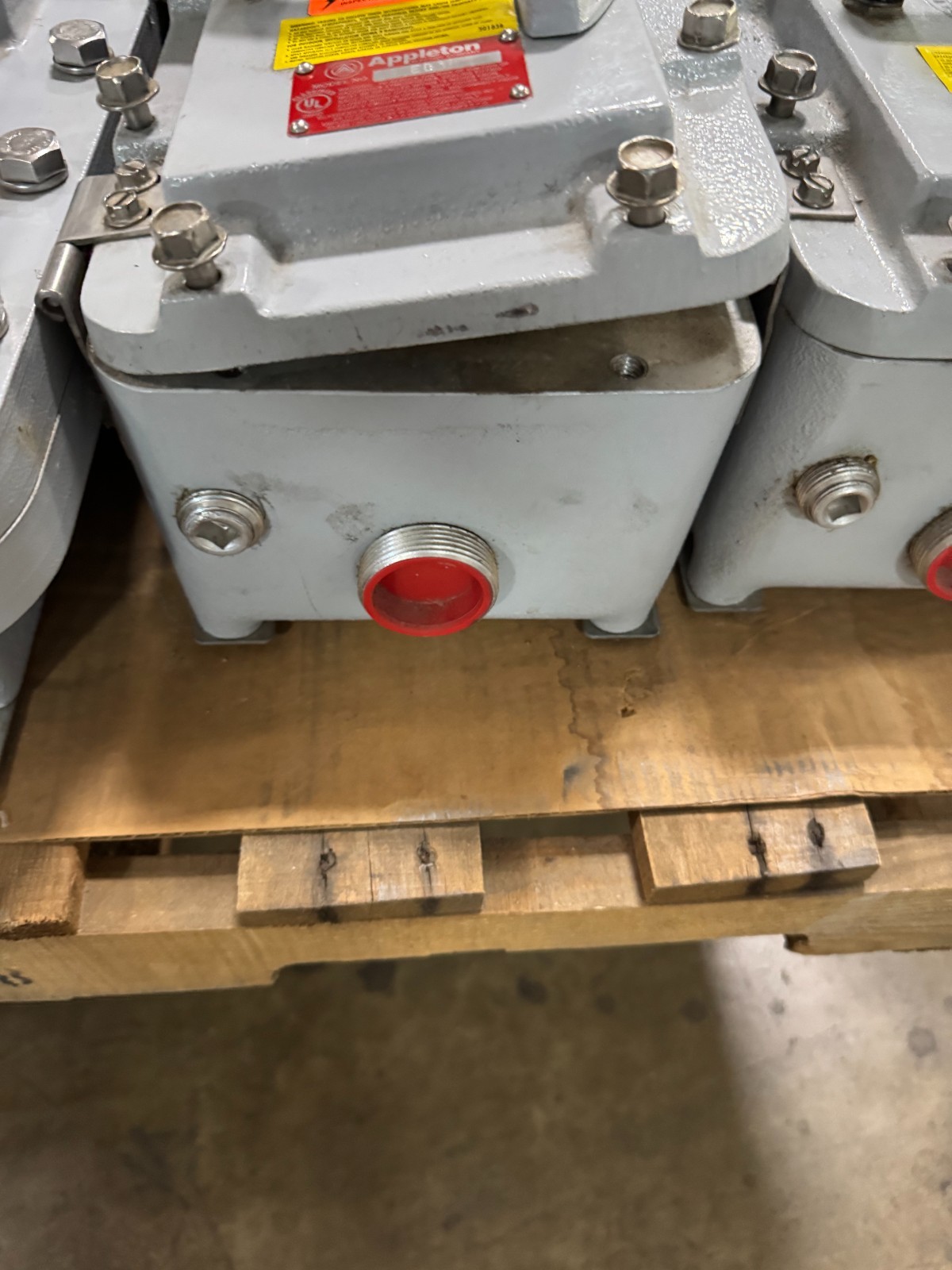

• Enclosure Material: Copper-free aluminum with a 2-coat epoxy enamel finish

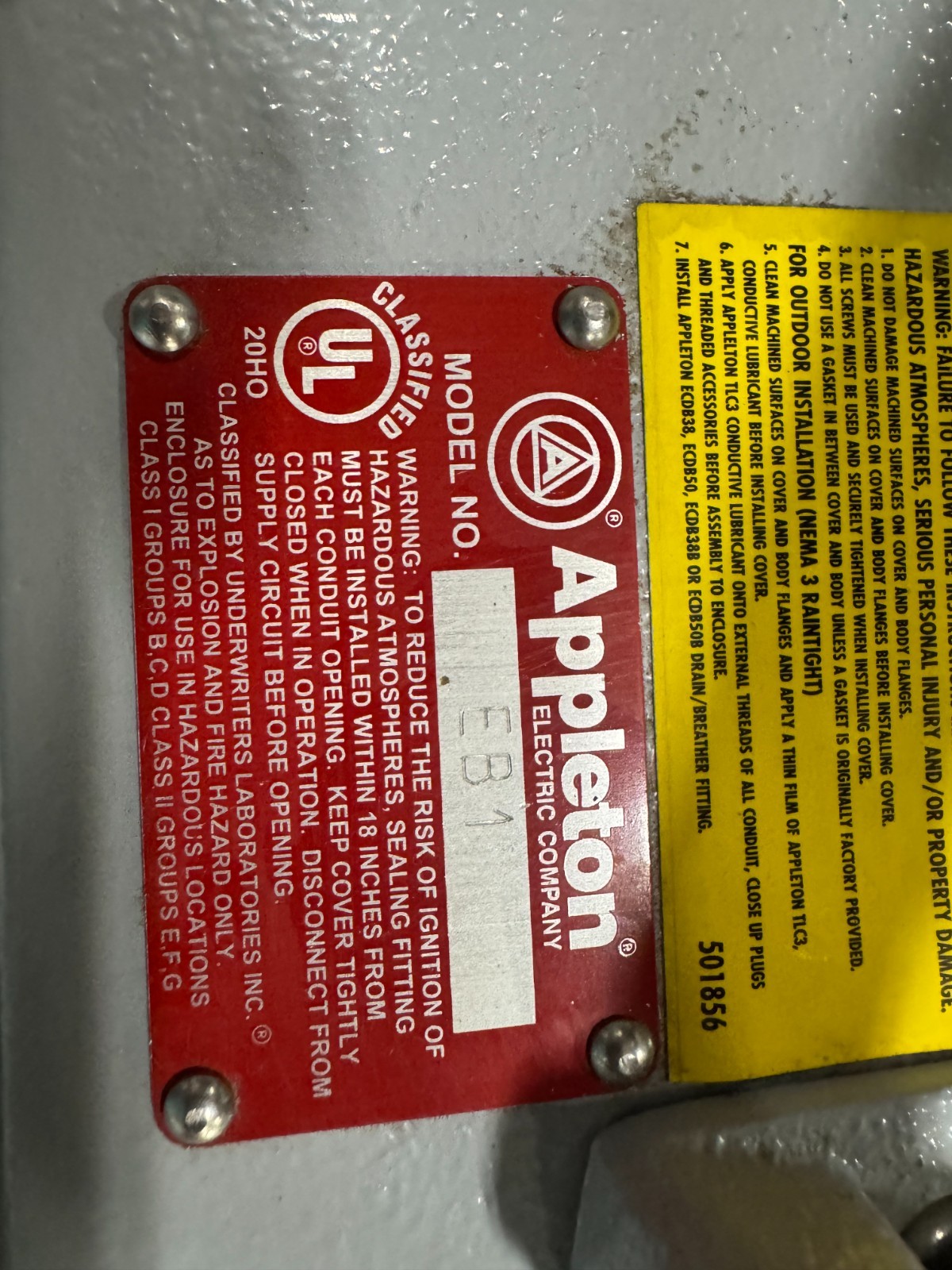

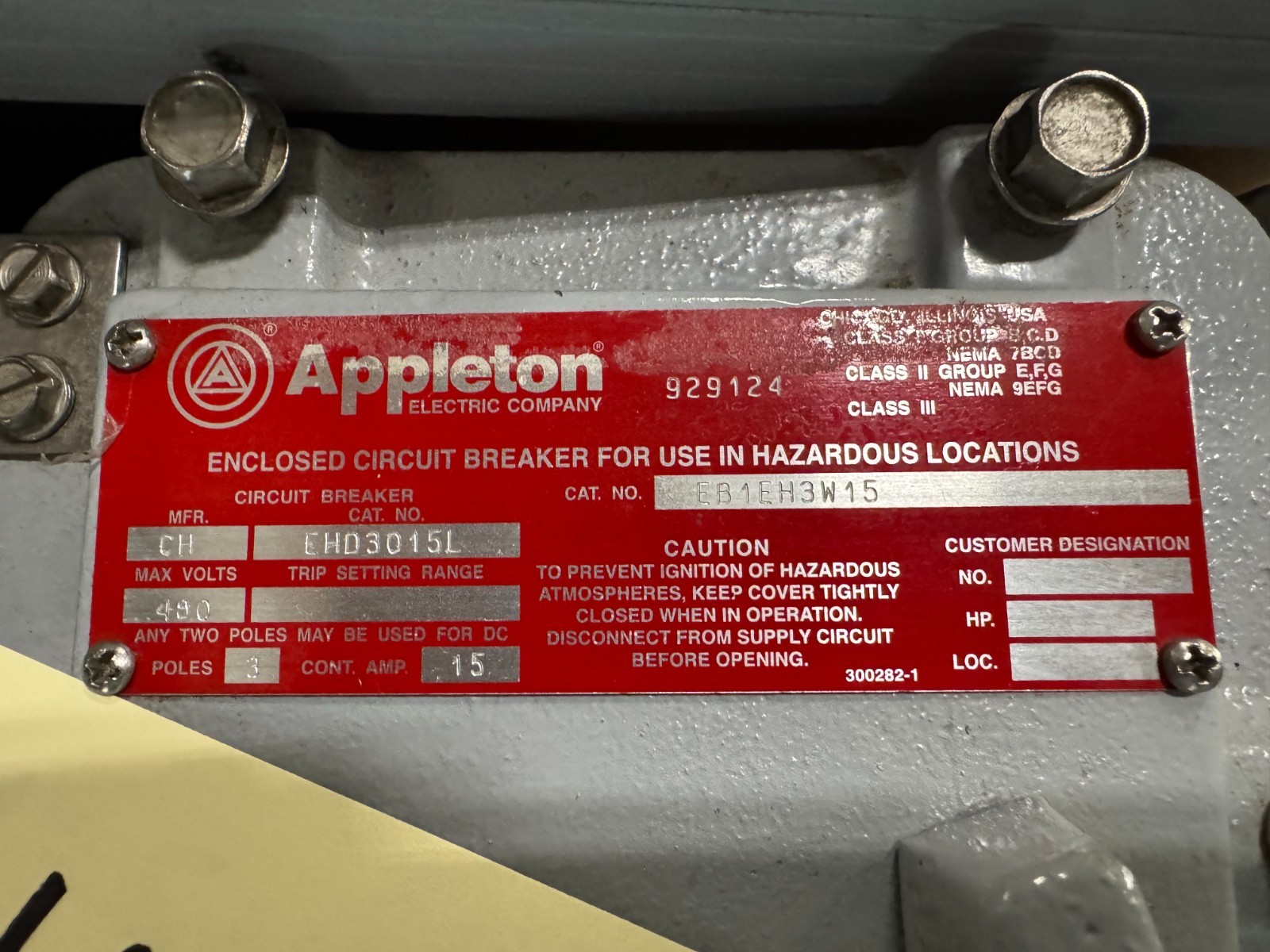

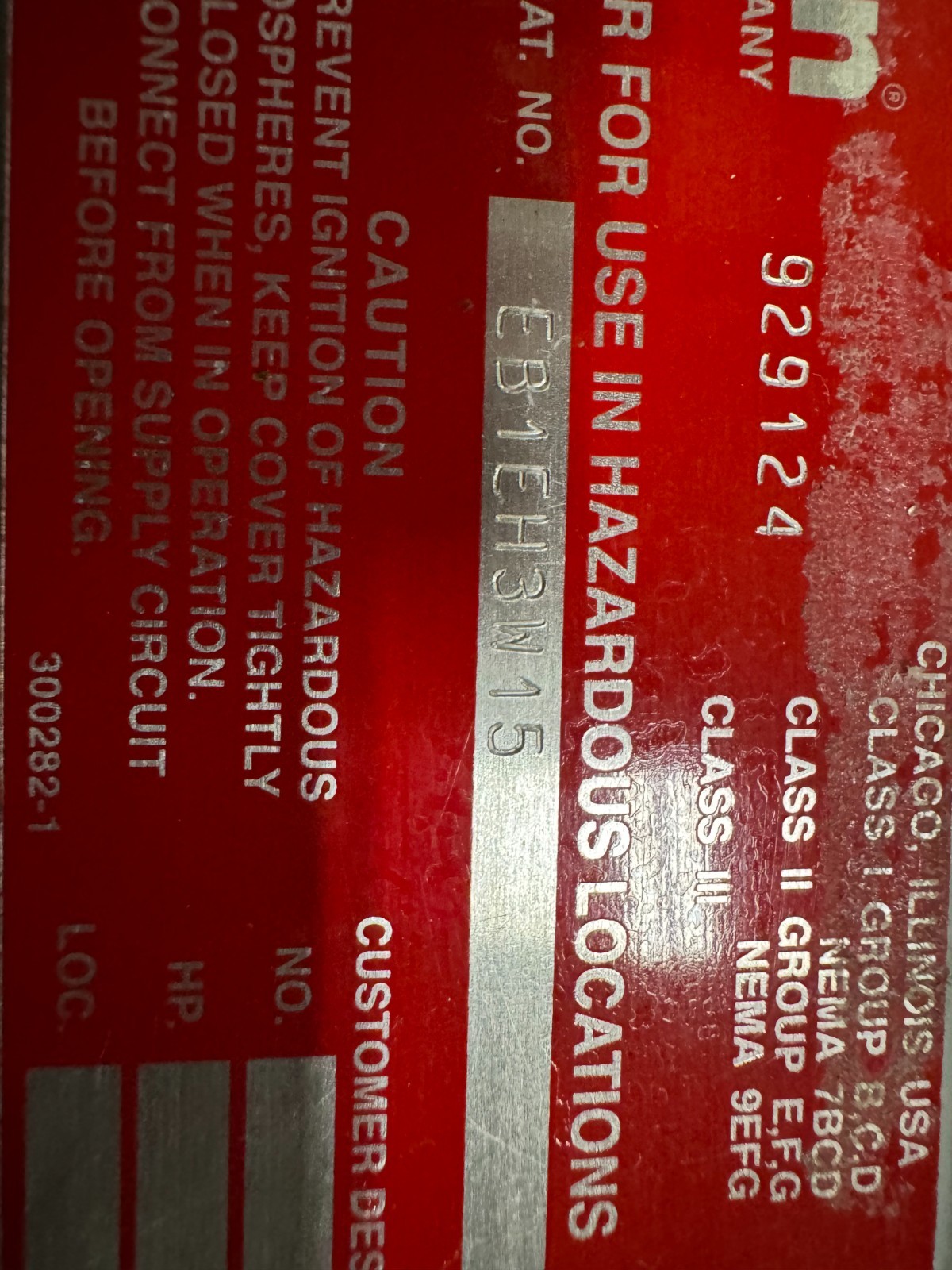

• Hazardous Location Ratings:Class I, Division 1 and 2, Groups B, C, D
• Class II, Division 1 and 2, Groups E, F, G
• Class III
• Environmental: NEMA 3R, 7B, 7C, 7D, 9E, 9F, 9G (suitable for indoor/outdoor, damp, and corrosive environments)

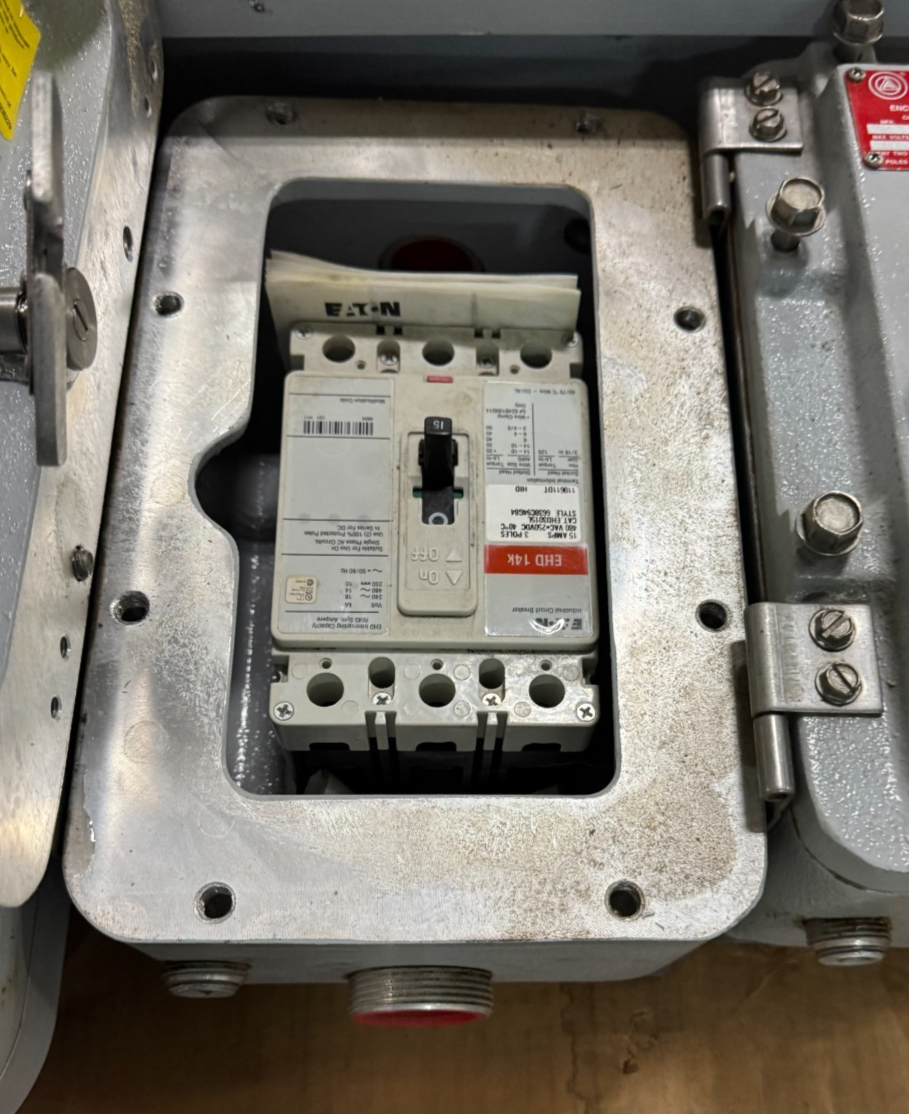

This complete catalog number represents the pre-assembled unit, combining the 15A 3-pole EHD circuit breaker inside the specialized explosion-proof aluminum bolted housing.
