EATON 350 HP DC MOTOR MODEL M0-130019-0217 2XJ 45 VDC

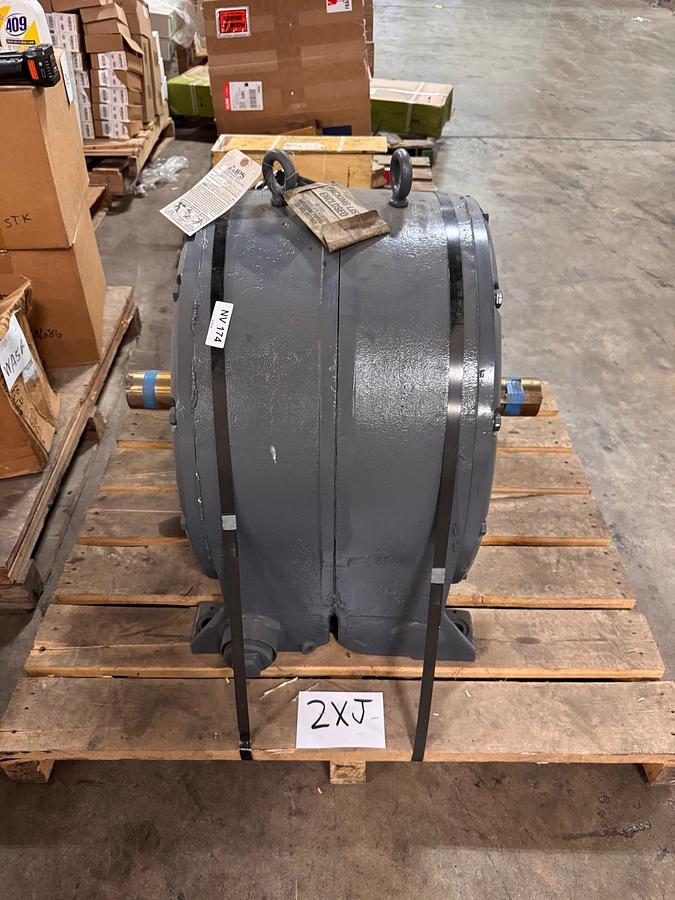

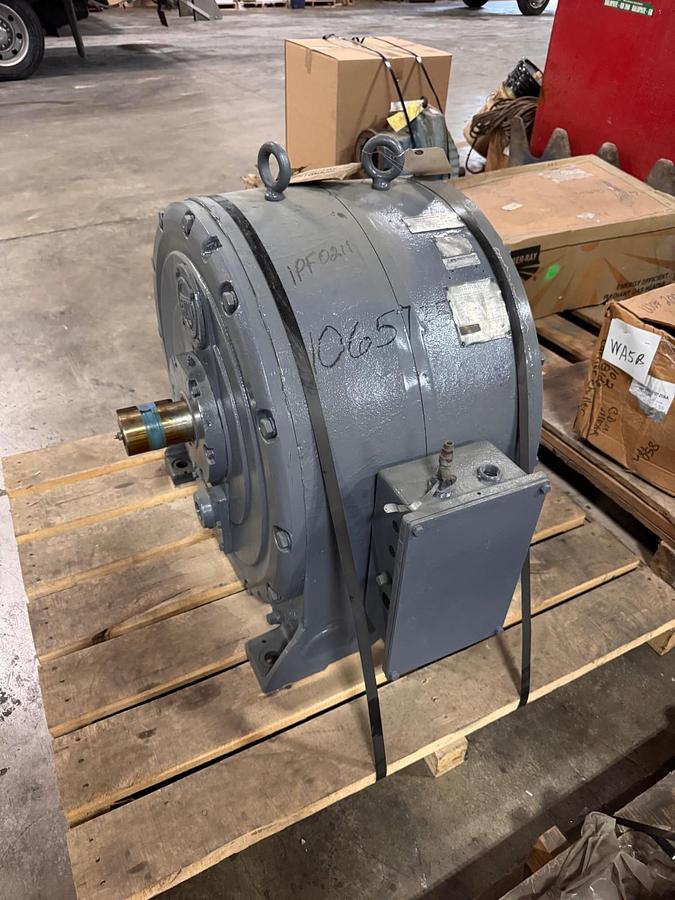

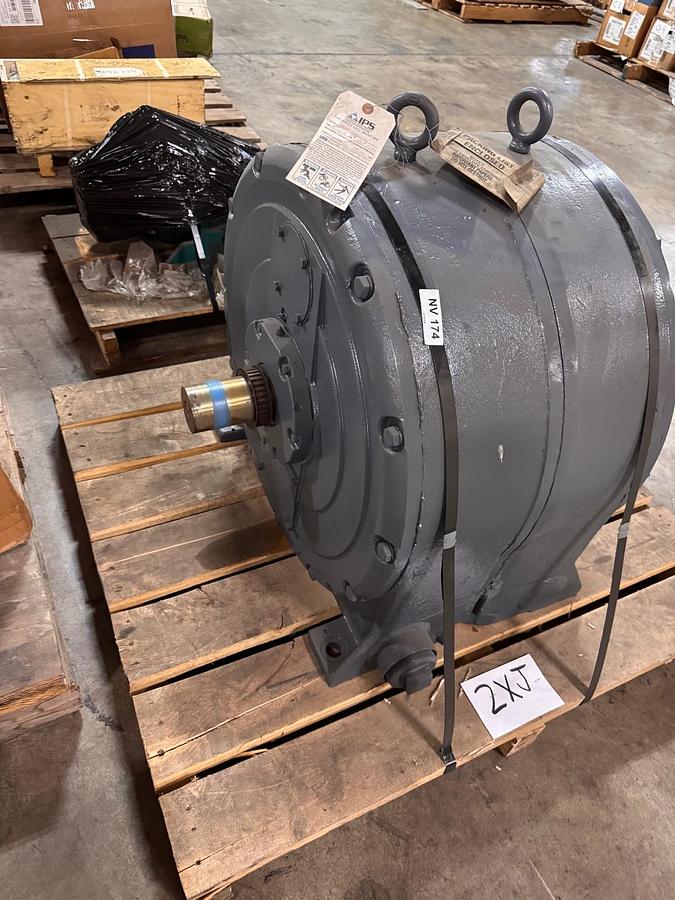

Eaton Electric 350 HP DC Motor

2XJ

Model M0-130019-0217

1700 RPM 45O DCV three-phase

The Eaton Model M0-130019-0217 is a specialty, heavy-duty industrial electric motor.

The specifications found on this unit's nameplate often surprise technicians because they combine both DC and AC properties. While it is built with 45V Direct Current (DC) internals, it integrates into an AC Three-Phase system. This is typically accomplished through an onboard or paired industrial rectifier/drive system to achieve high torque control.

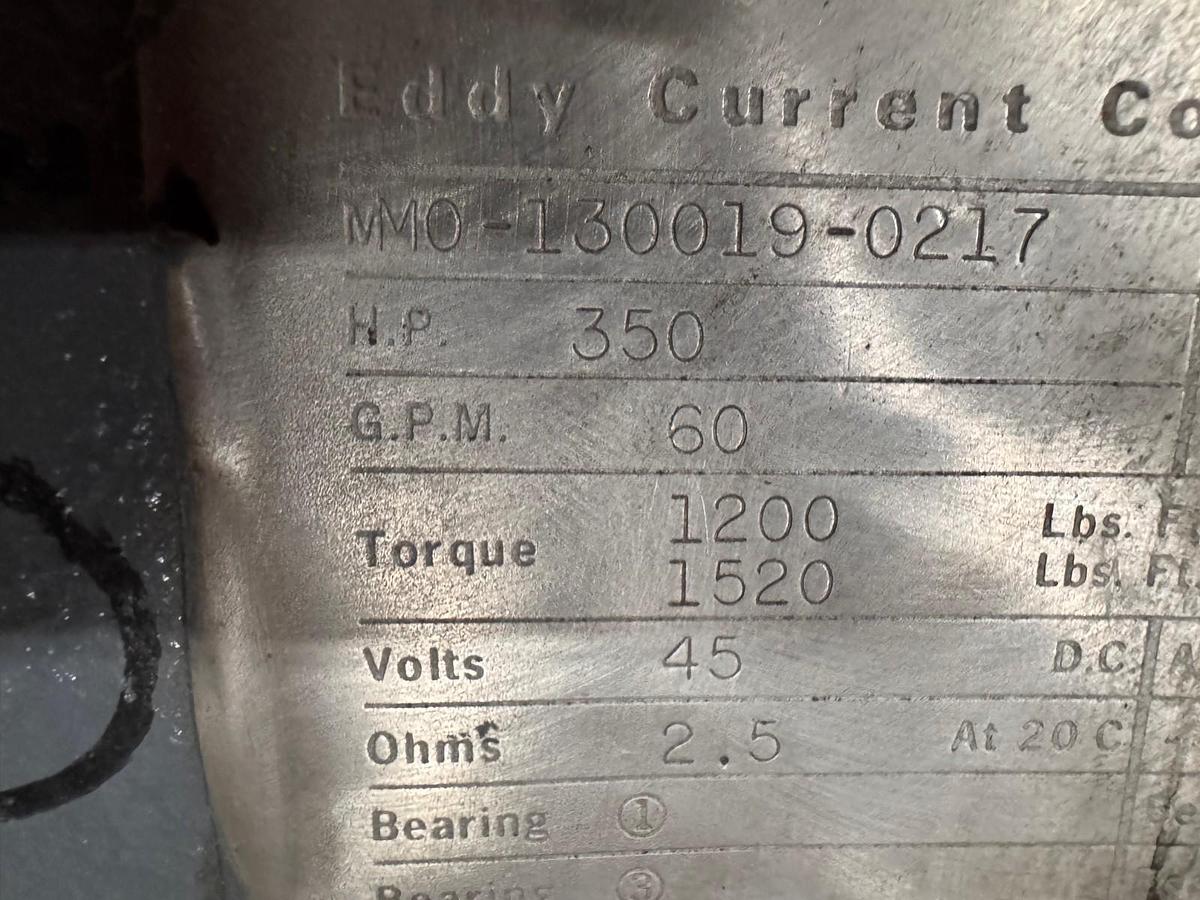

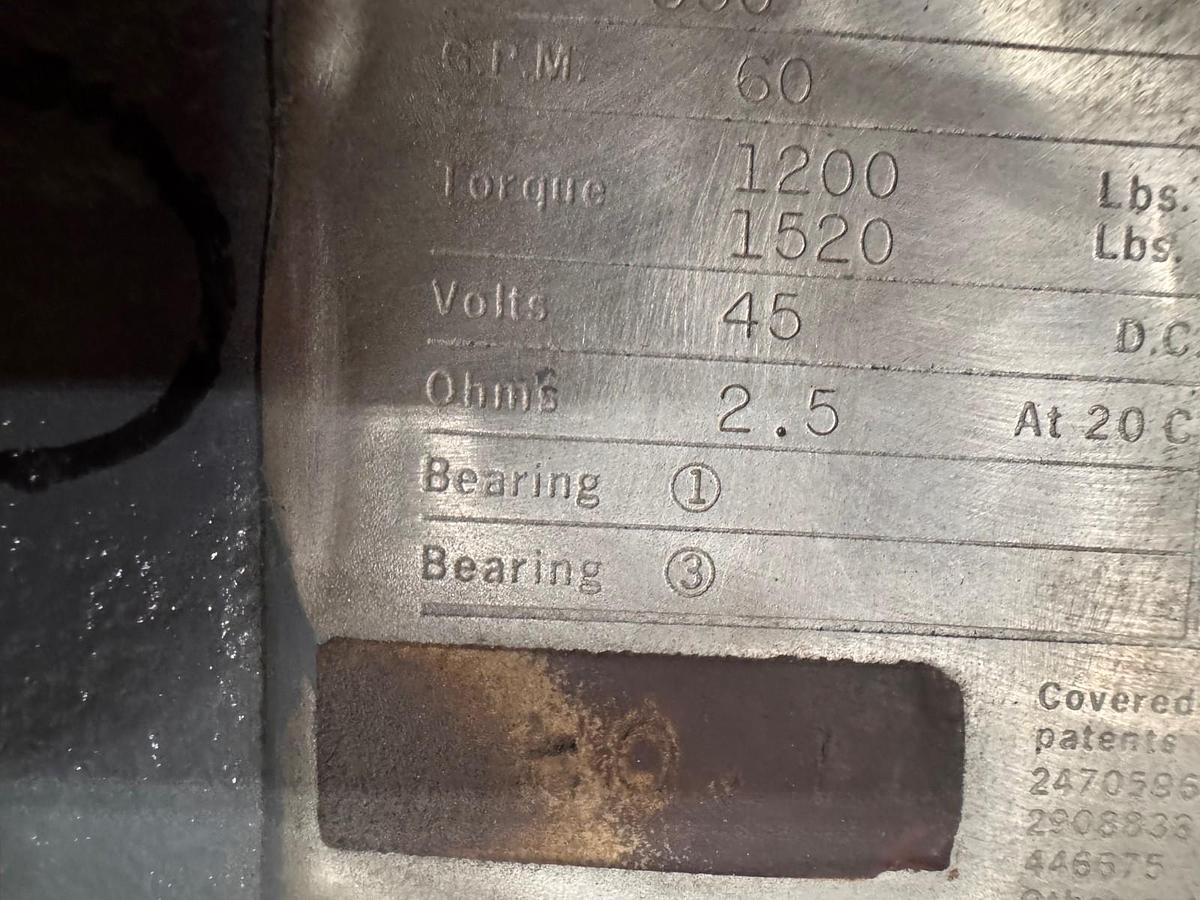

The label "45OLT DCV" on the nameplate indicates its 45 Volt DC operating construction. Because it is a heavy-duty unit built for precise speed and high startup torque control, it relies on three-phase AC distribution power rectified through an external drive or controller to power its internal low-voltage DC windings.

Technical Specifications Overview

Manufacturer: Eaton Corporation

Model / MPN: M0-130019-0217

Power Rating: 350 HP

Rotational Speed: 1700 RPM

Current Type: DC Low Voltage

Voltage Rating: 45 Volt DC

Phase: Three-Phase AC Input (rectified)

Frequency: 60 Hz

Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
