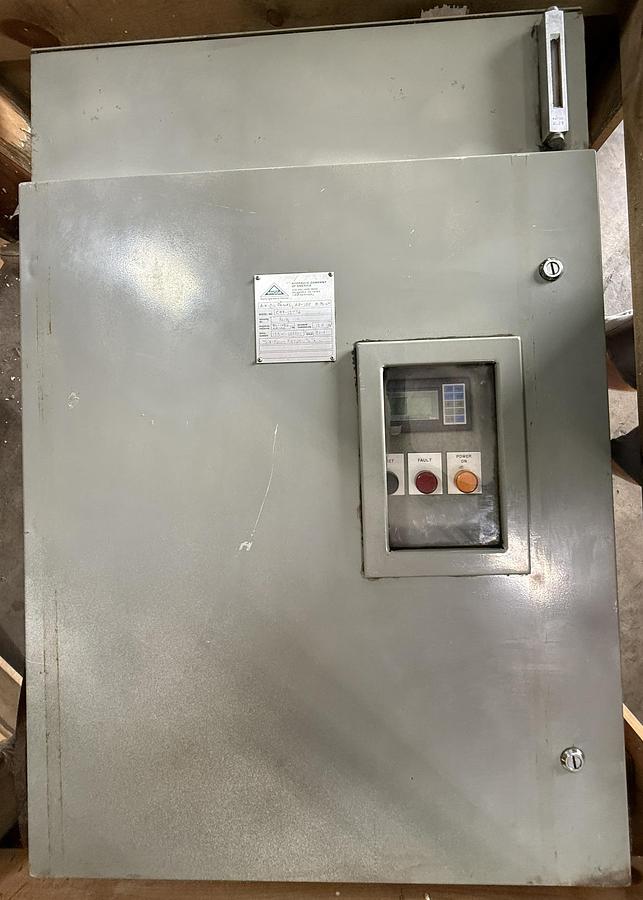

HYCOA AIR/OIL LUBRICATION PUMP UNIT A0-100 8-POINT MODEL C99-12776

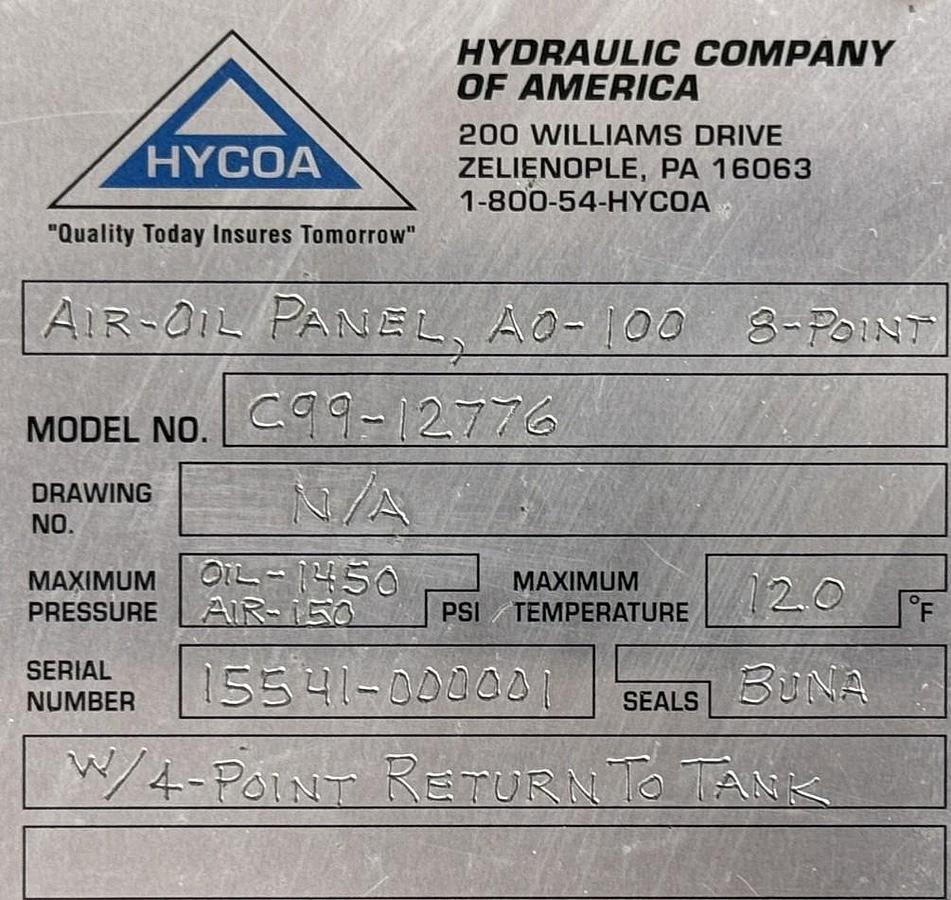

HYCOA AIR/OIL LUBRICATION PANEL

A0-100 8-POINT MODEL C99-12776

2YZ9

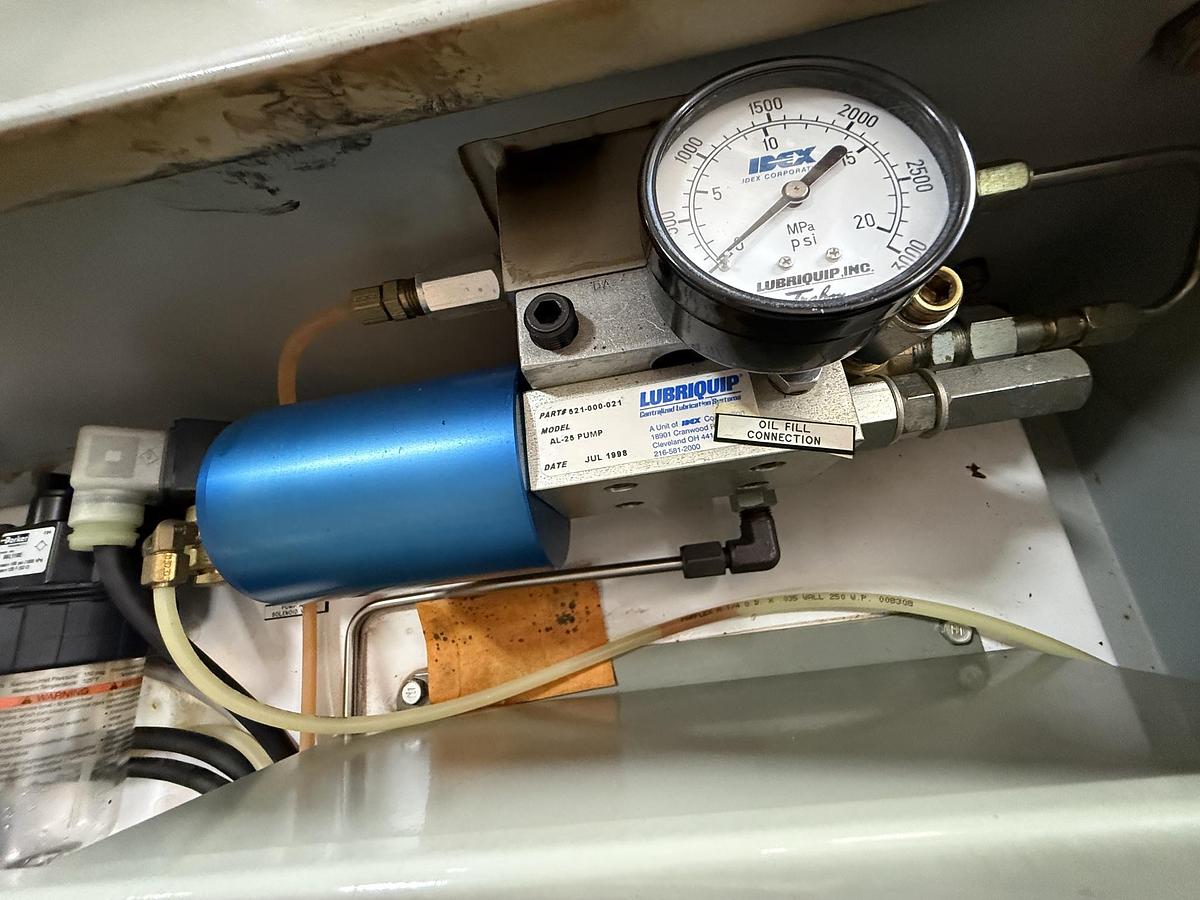

OIL-1450 PSI AIR-150 PSI 120 DEGREE F

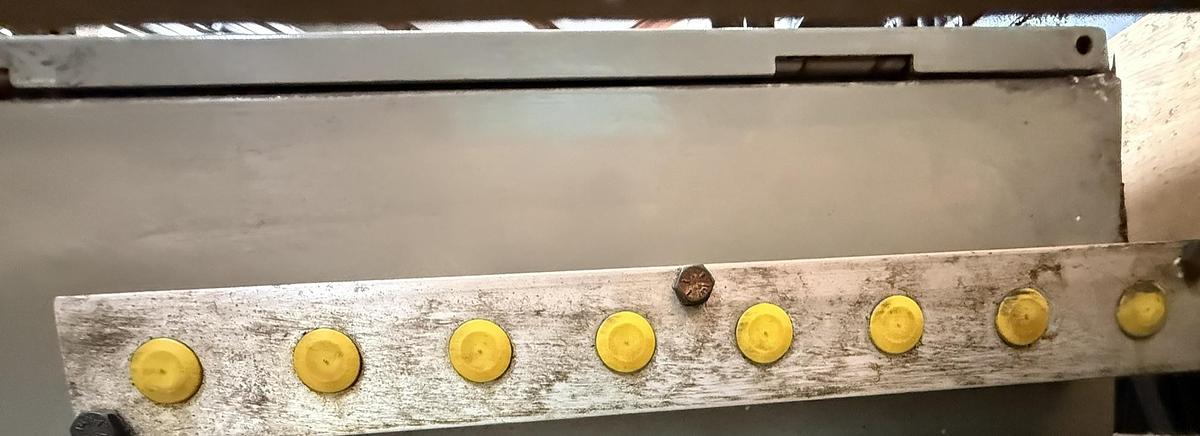

W 4-POINT RETURN TO TANK BUNA SEALS

The HYCOA Air/Oil Panel AO-100 (8-Point Model, Part/Drawing Number C99-12776) is a specialized industrial air-oil lubrication panel engineered by HYCOA (Hydro-Coates). It is designed to deliver precise, micro-quantities of oil mixed into a continuous stream of compressed air to lubricate high-speed machine bearings, spindles, or chains.

• Key Specifications & ConfigurationSeries / Model: AO-100 Series Air/Oil Panel
• Capacity / Ports: 8-Point Model (supplies precise fluid distribution to up to 8 separate lubrication zones)
• Factory Drawing / Part Number: C99-12776
• Application: Continuous precision lubrication

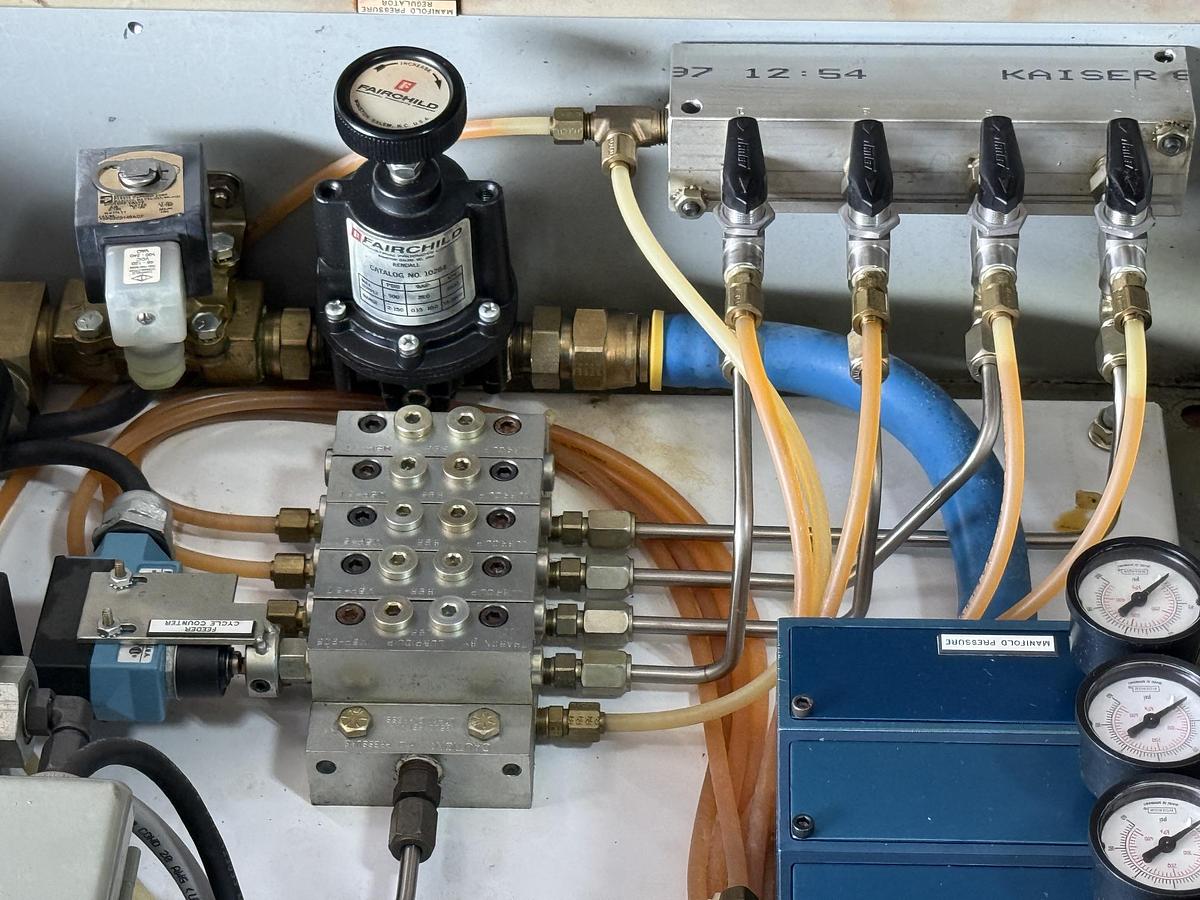

• Core Functions & Operating Principle Controlled Air-Oil Mixing: The panel utilizes mixing blocks to inject metered quantities of oil into a regulated, continuous air stream. This prevents standard "oil misting" hazards while maintaining a reliable lubrication film on components.

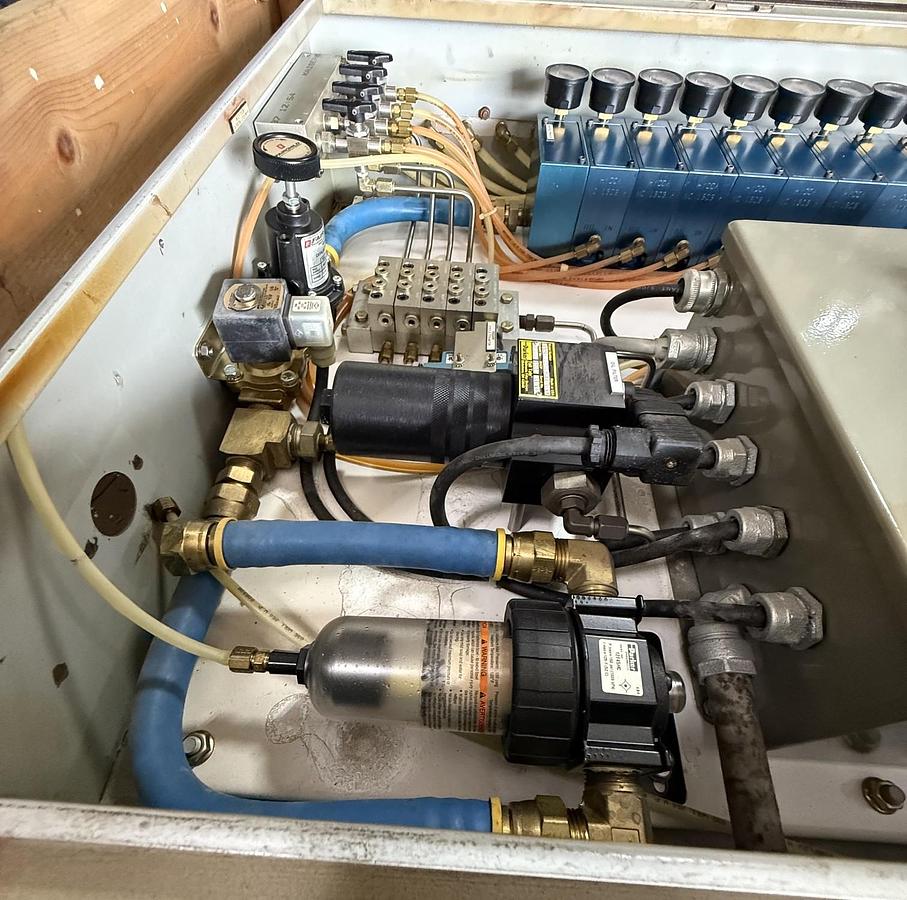

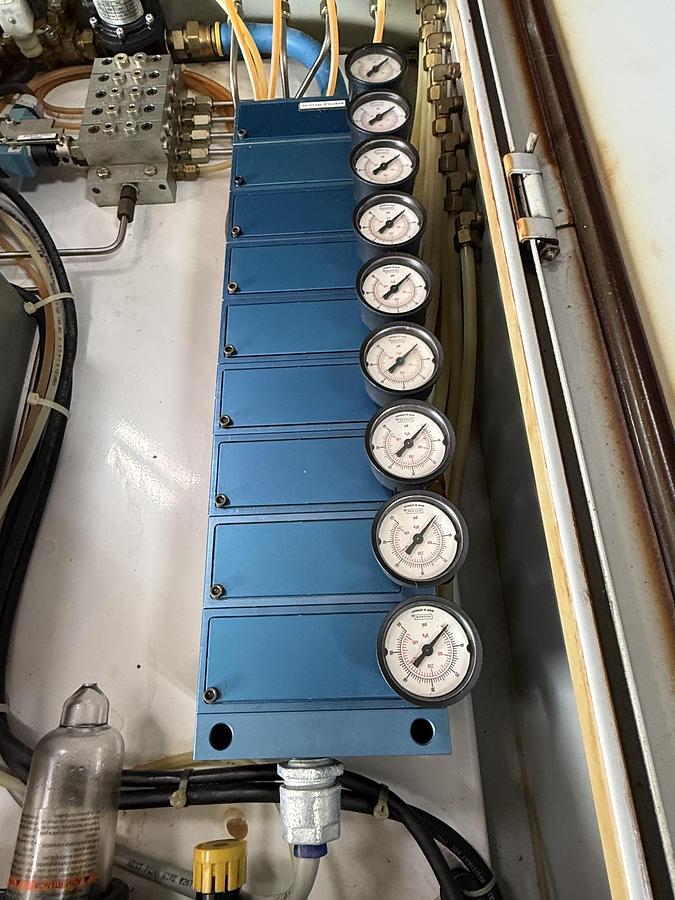

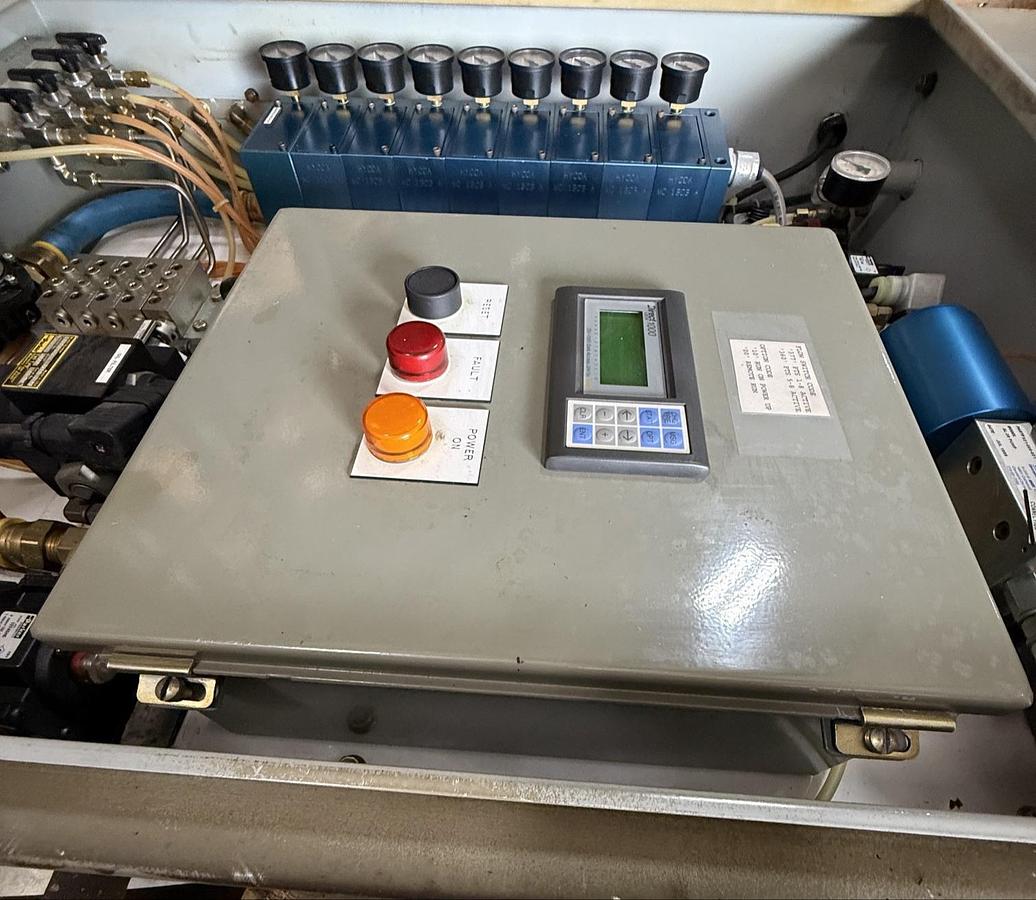

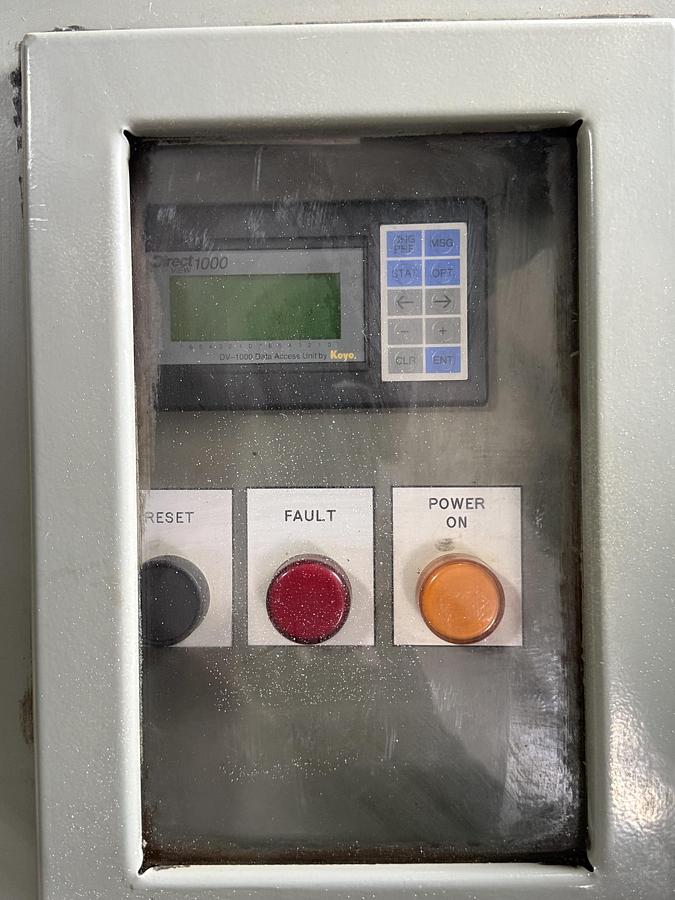

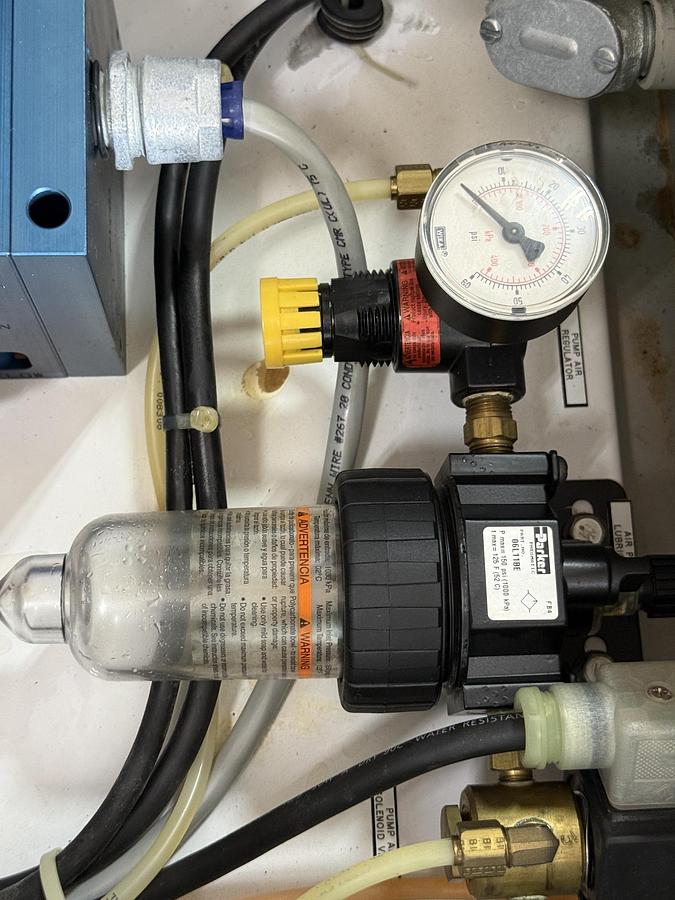

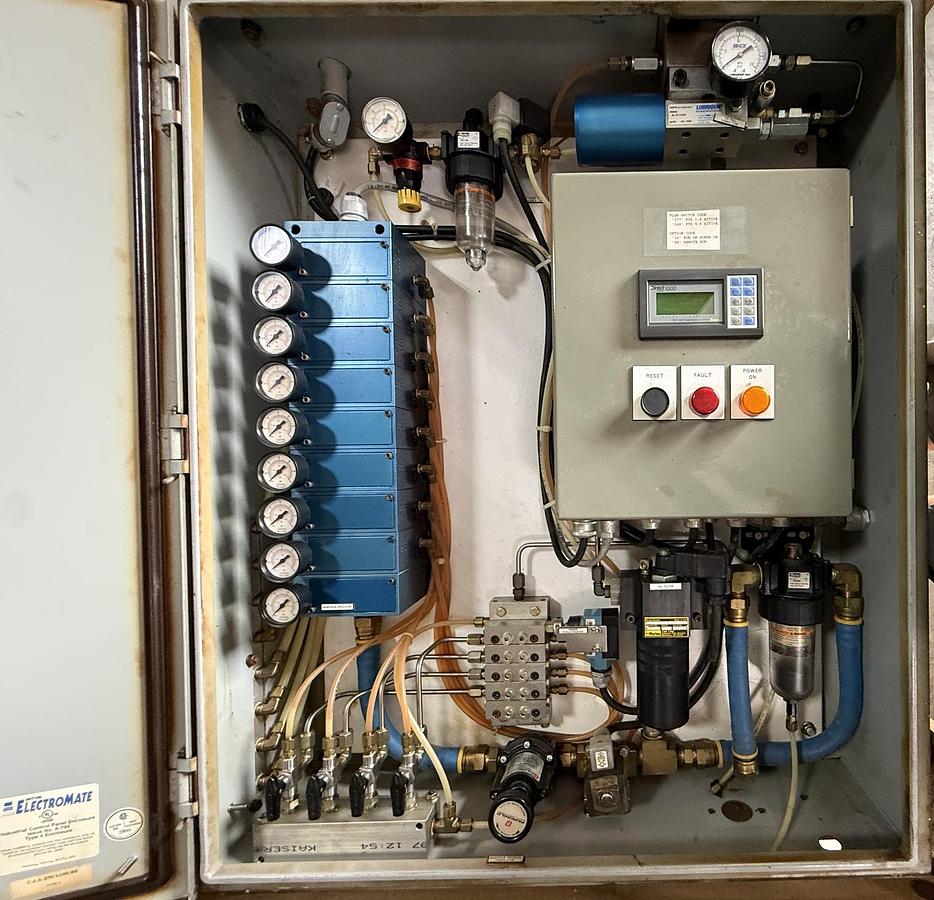

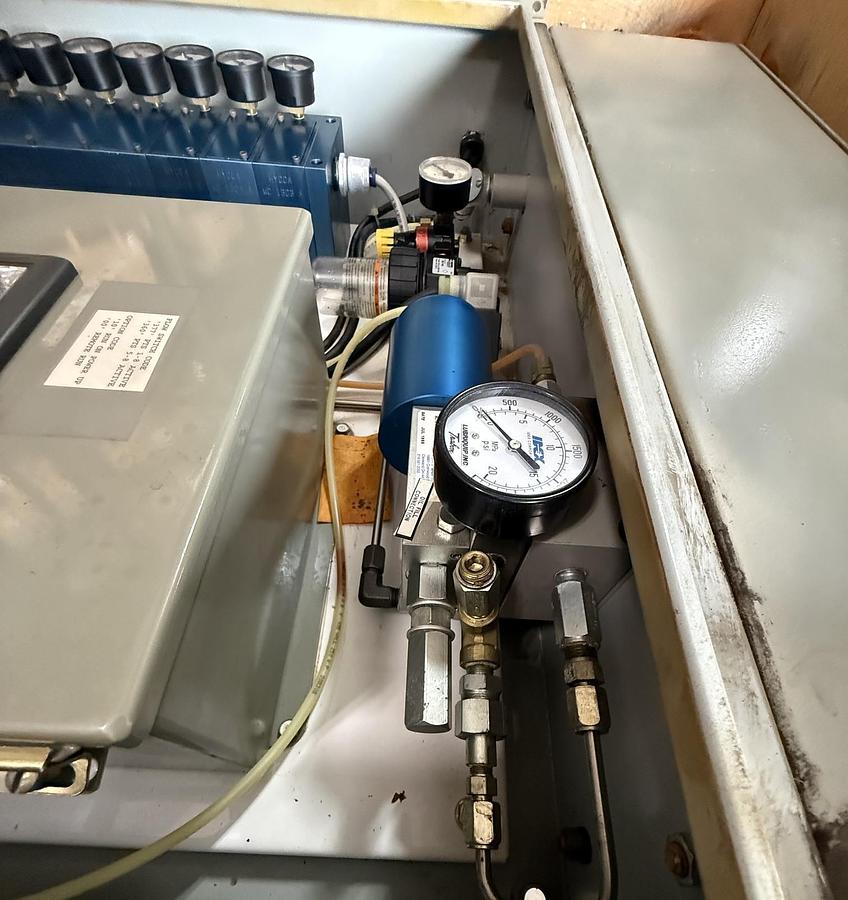

• System Component Integration: The panel acts as a centralized station, typically integrating air filter regulators, oil pressure monitoring gauges, a cycle timer, and precision distribution blocks.
• Industrial Application: Commonly utilized on high-speed CNC machine tool spindles, industrial gearboxes, heavy-duty processing machinery, and steel mill rolling elements where conventional grease fails or causes excessive friction.
