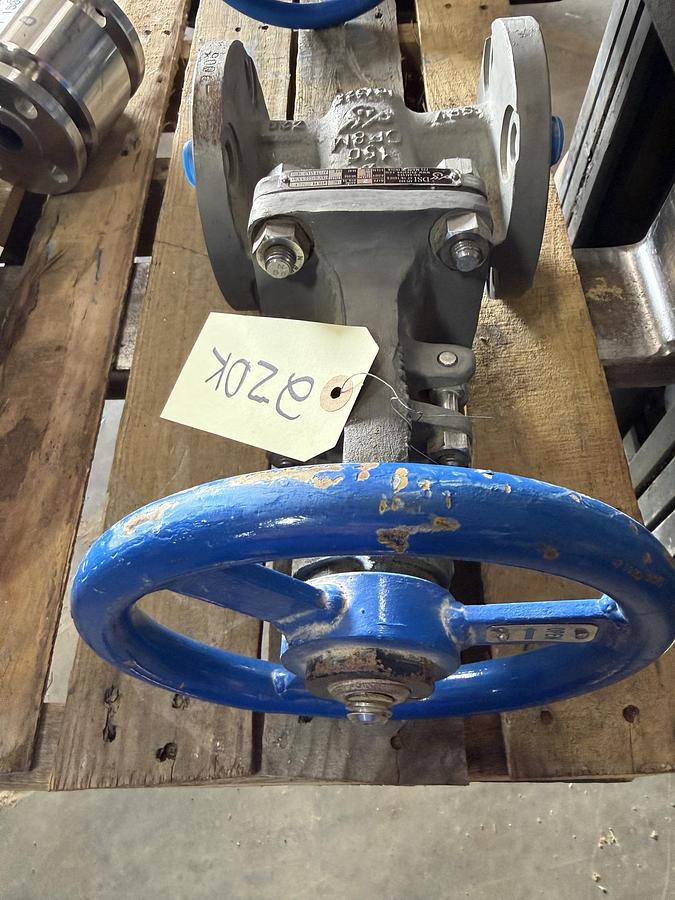

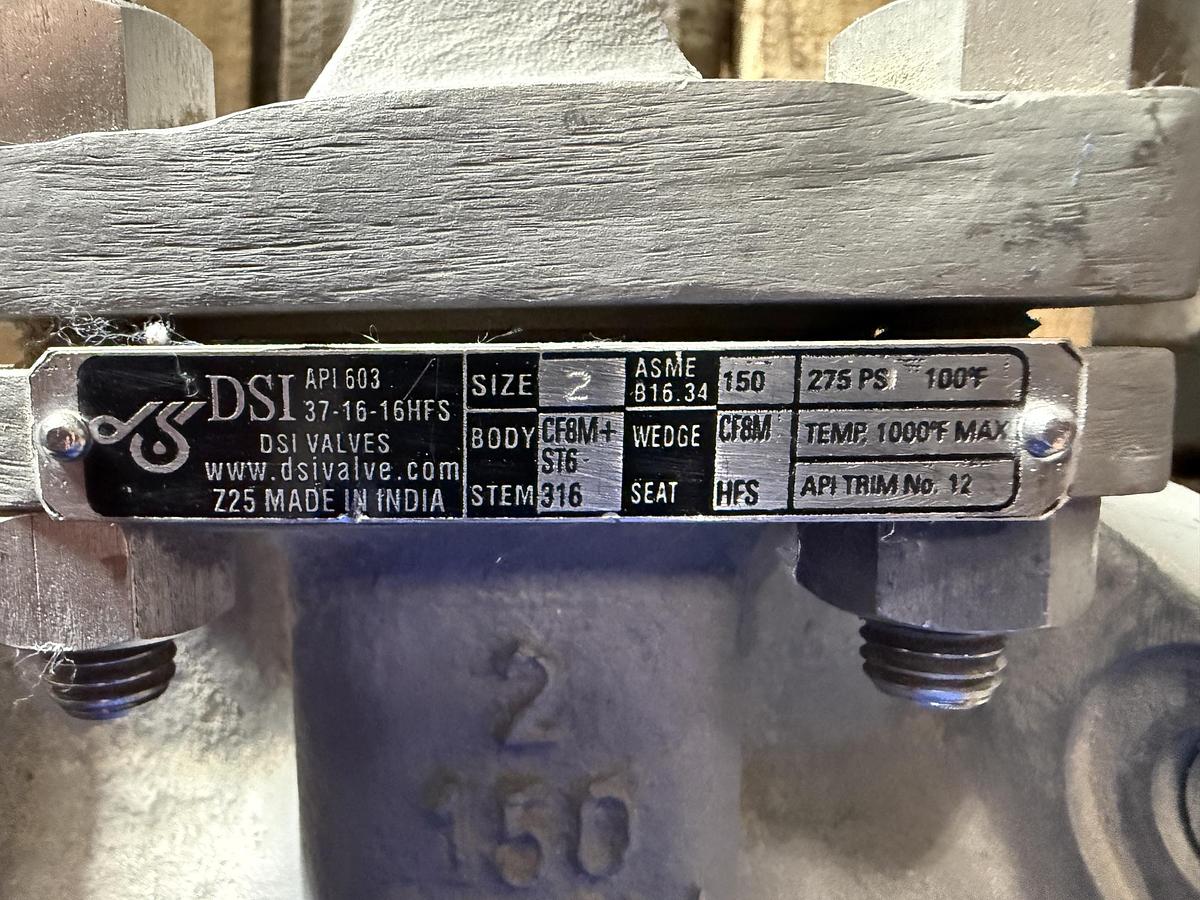

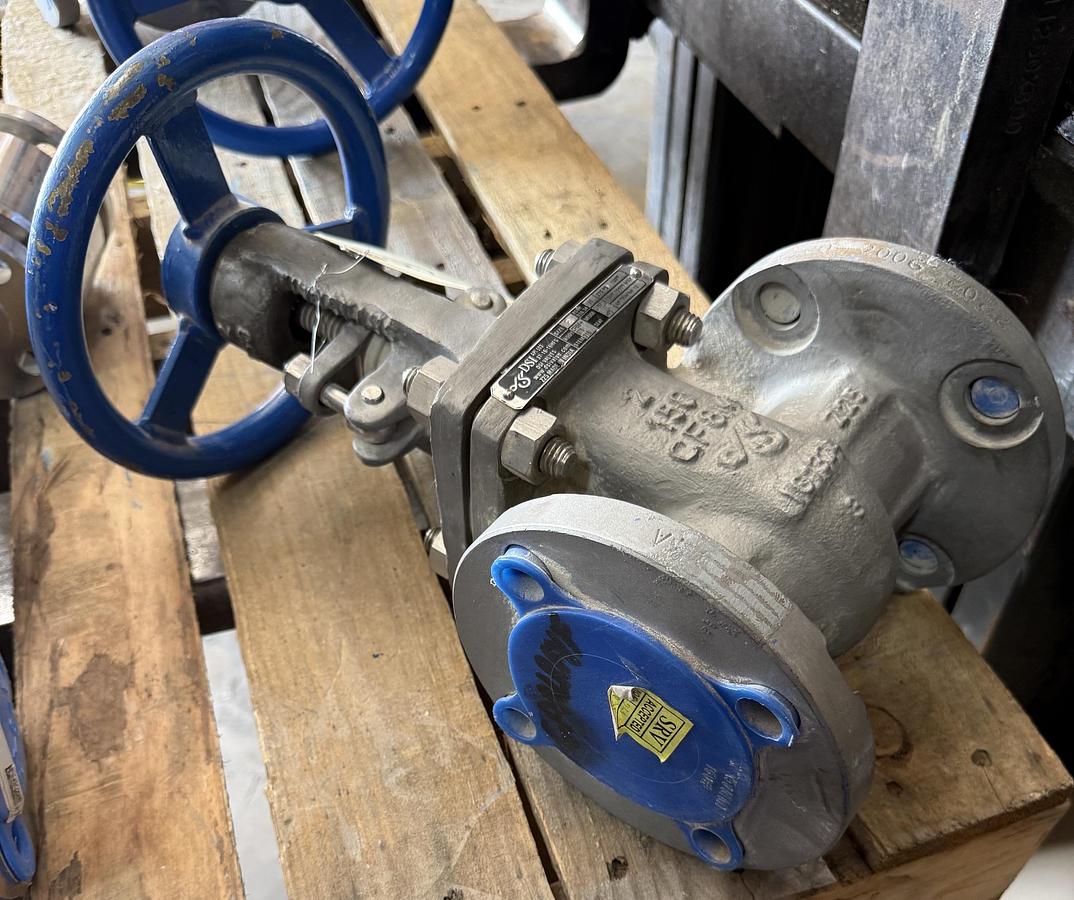

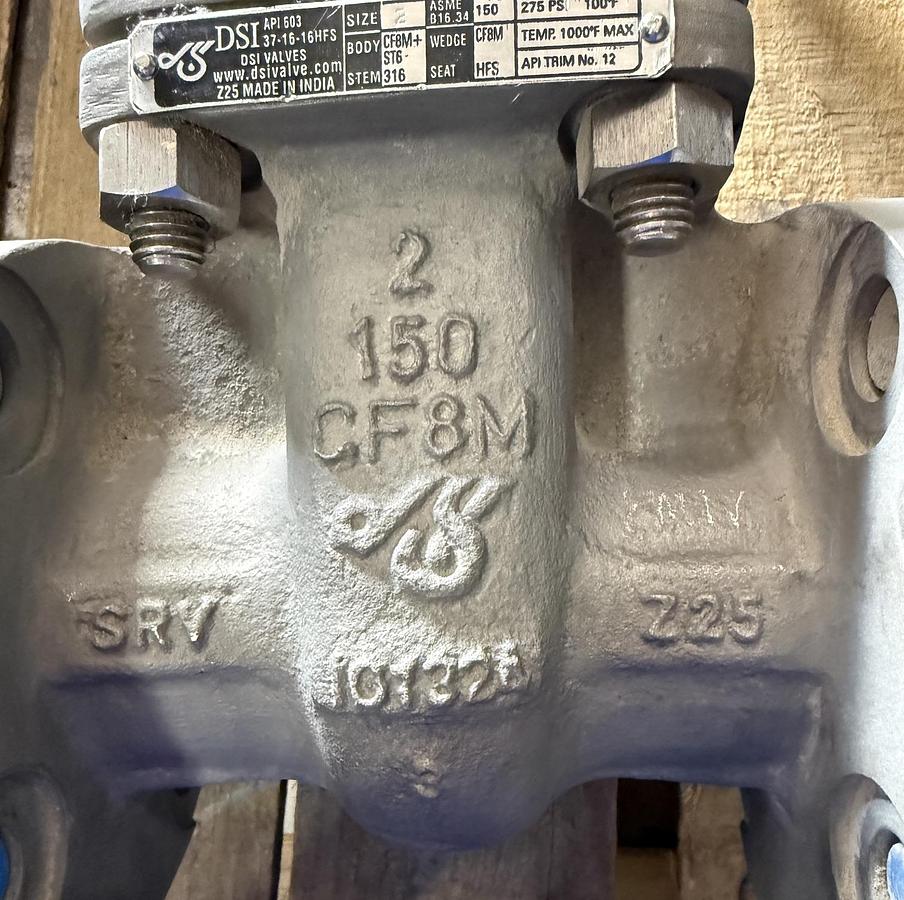

DSI 2" 150 RF GATE VALVE 316 BODY 2ZDK FIG# 37-16-16HFS
$799
Available quantity:1
Description
DSI
2" 150 RF GATE VALVE
316 BODY 316 TRIM
2ZDK
FIG# 37-16-16HFS
Technical Specifications
- Design Standards: Engineered in compliance with ASME B16.34 (valves), API 603 / API 600 (corrosion-resistant bolted bonnet gate valves), and checked under low fugitive emission criteria (such as API 624).
- Face-to-Face Dimension: Built according to dimensional matrix ASME B16.10. A standard 2" Class 150 flanged gate valve spans a fixed laying length of 7.0 inches (178 mm).
- Flange Configuration: Conforms to standard ASME B16.5 specifying an 4-bolt hole pattern layout.
- Applications: Best suited for tight shut-off isolation in oil and gas production, marine piping, highly corrosive petrochemical environments, and water treatment loops handling severe medium chemistries.
Specifications
| Manufacturer | DSI |
| Model | 37-16-16HFS |
| Condition | Refurbished |
| Stock Number | 2ZDK |
| * Unit Size | 2" |
| PRESSURE | 150 PSI |
| * Manufacturer | DSI |
| Body Material | 316 SS |
| TRIM | 316 SS |
| SEATS | 316 HF |
| MPN | FIG# 37-16-16HFS |
