DK-LOK MOD V64-MF-12N16N-10-C 3/4" M X 1" F RELIEF VALVE

DK-LOK CORP RELIEF VALVE

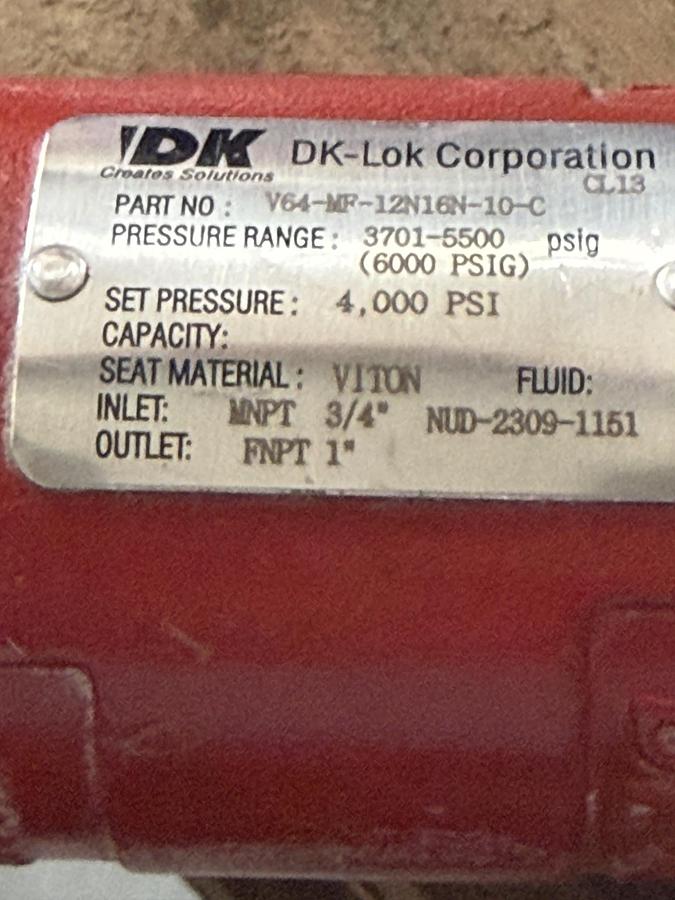

MODEL V64-MF-12N16N-10-C

2ZG1-7

3/4" MALE THD X 1" FEMALE THD

SET PRESSURE 4000 PSI

PRESSURE RANGE 3500 - 6000 PSI

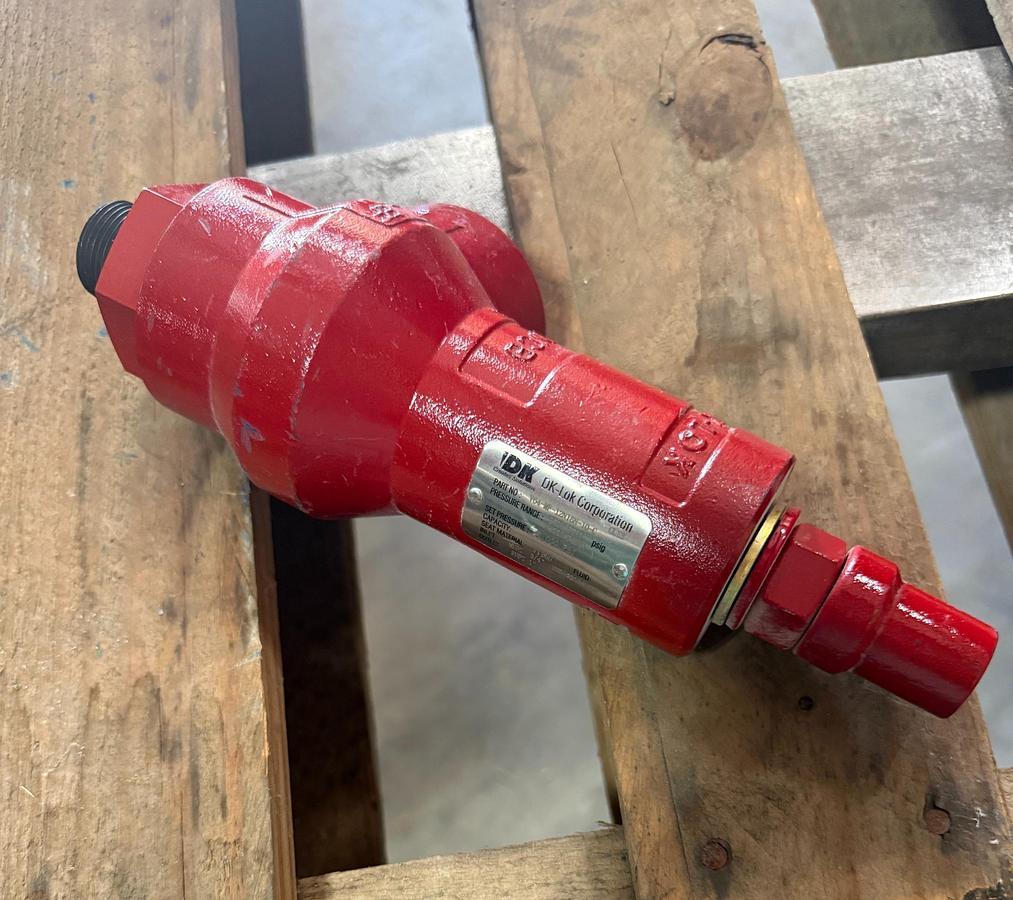

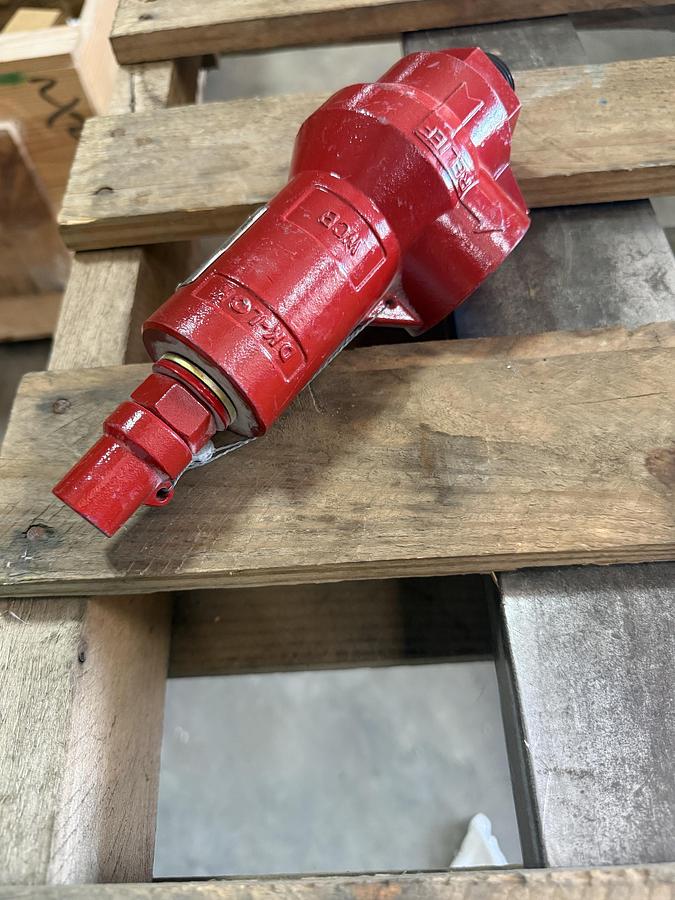

The DK-LOK V64 Series Relief Valve (Model: V64-MF-12N16N-10-C) is a heavy-duty, high-pressure instrumentation safety valve. This specific model is configured as a Male-to-Female connection with a pre-adjusted cracking threshold

Technical Specifications OverviewThe technical breakdown of this specific model configuration includes:

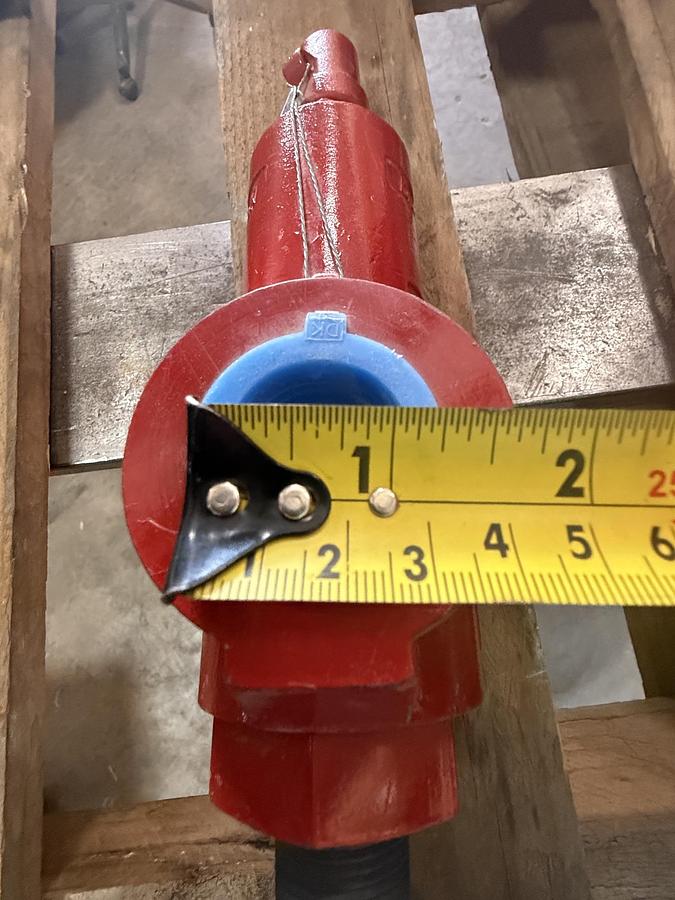

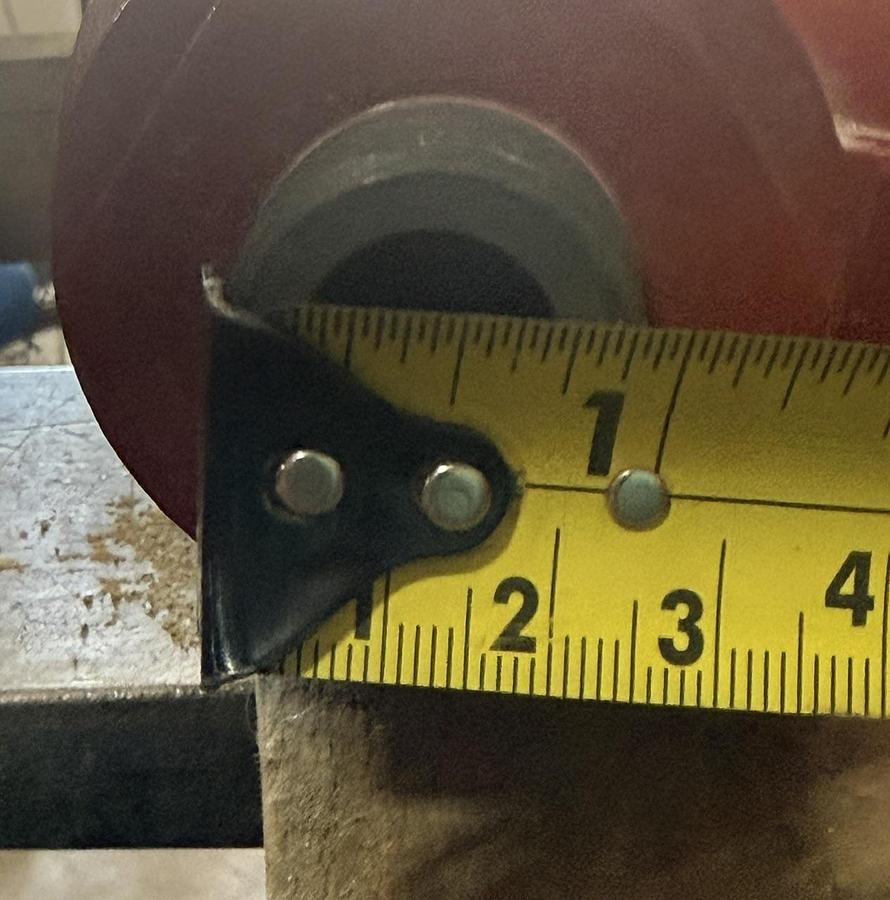

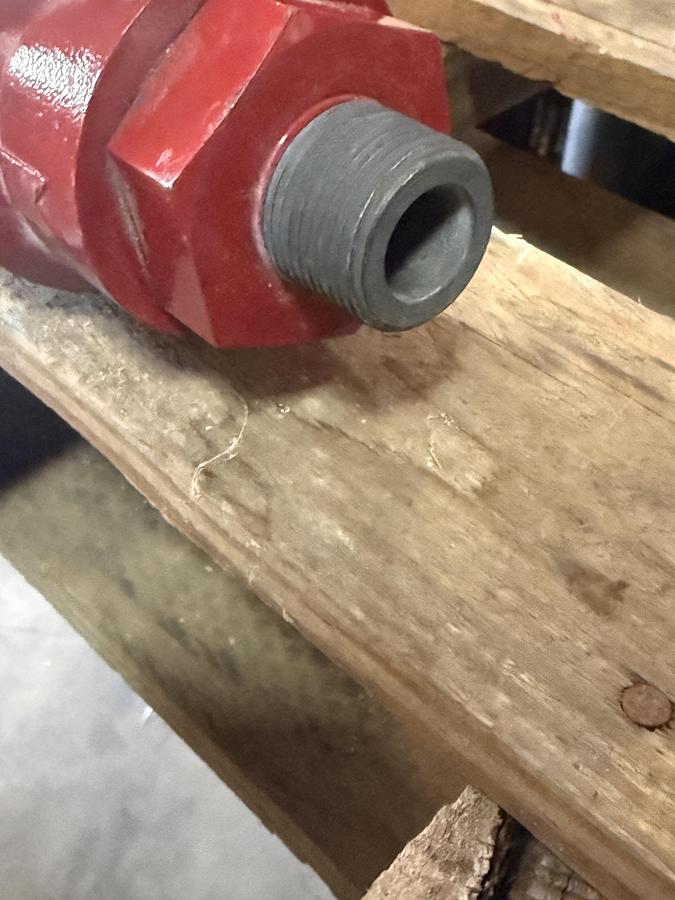

• Connections: 3/4" Male NPT inlet (indicated by 12N for 12/16ths of an inch) x 1" Female NPT outlet (indicated by 16N). The MF denotes the Male-to-Female orientation.
• Set Pressure: Factory-preset to 4,000 PSI (Cracking Pressure).
• Spring Pressure Range: Equipped with a standard 10-coded spring, operating within an adjustable range of 3,500 to 6,000 PSI.
• Body Material: C indicates a Carbon Steel construction (valves are provided with a protective painted surface).
• Maximum Working Pressure: 6,000 psig (413 bar).
• Orifice Size: 0.404 inches (10.26 mm).
• Certifications: This series features PED (Pressure Equipment Directive) certification and CRN registration.


• Core Performance FeaturesSoft-Seat Technology: Utilizes high-performance soft seat construction to provide repetitive, bubble-tight sealing and positive reseal performance after venting.
• Wide Media Fluid Handling: Rated for air, gases, compressed natural gas (CNG), and liquid relief applications.
• System Balancing: The valve automatically opens when the incoming system fluid pressure exceeds the 4,000 PSI spring force, allowing bypass flow to neutralize overpressure.
