WORLDWIDE REDUCER GEAR REDUCER 3AK5 MODEL KHN77-65/1-H-182/4TC SIZE 77 RATIO 64 TO 1

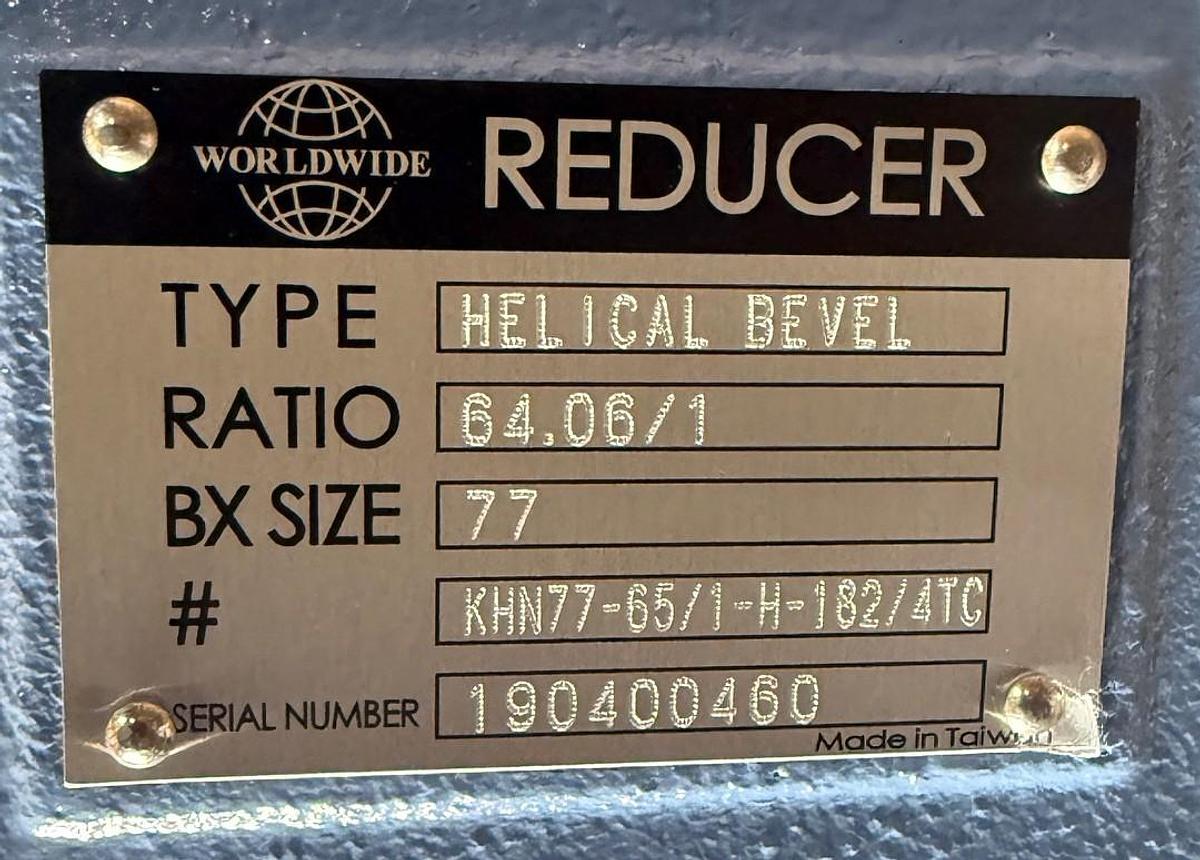

WORLDWIDE REDUCER GEAR REDUCER

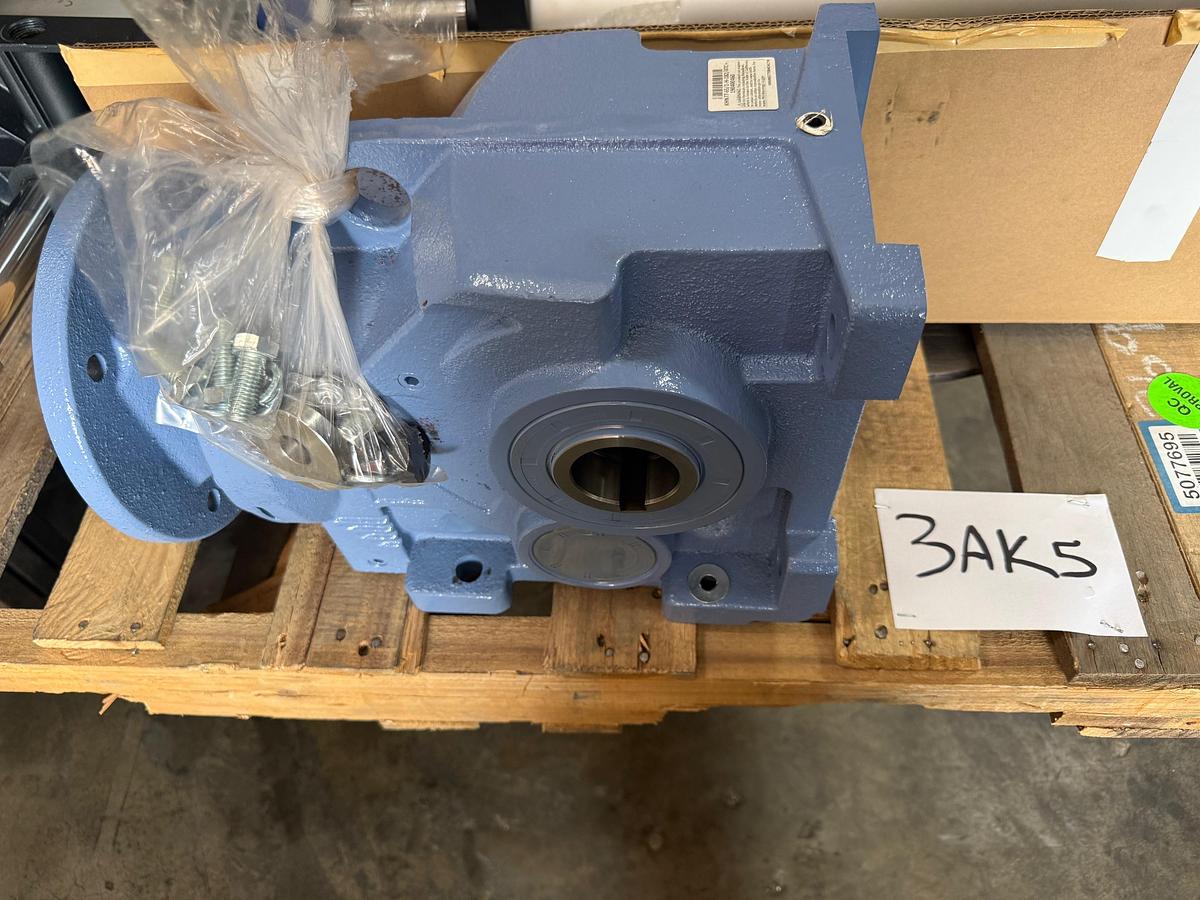

3AK5

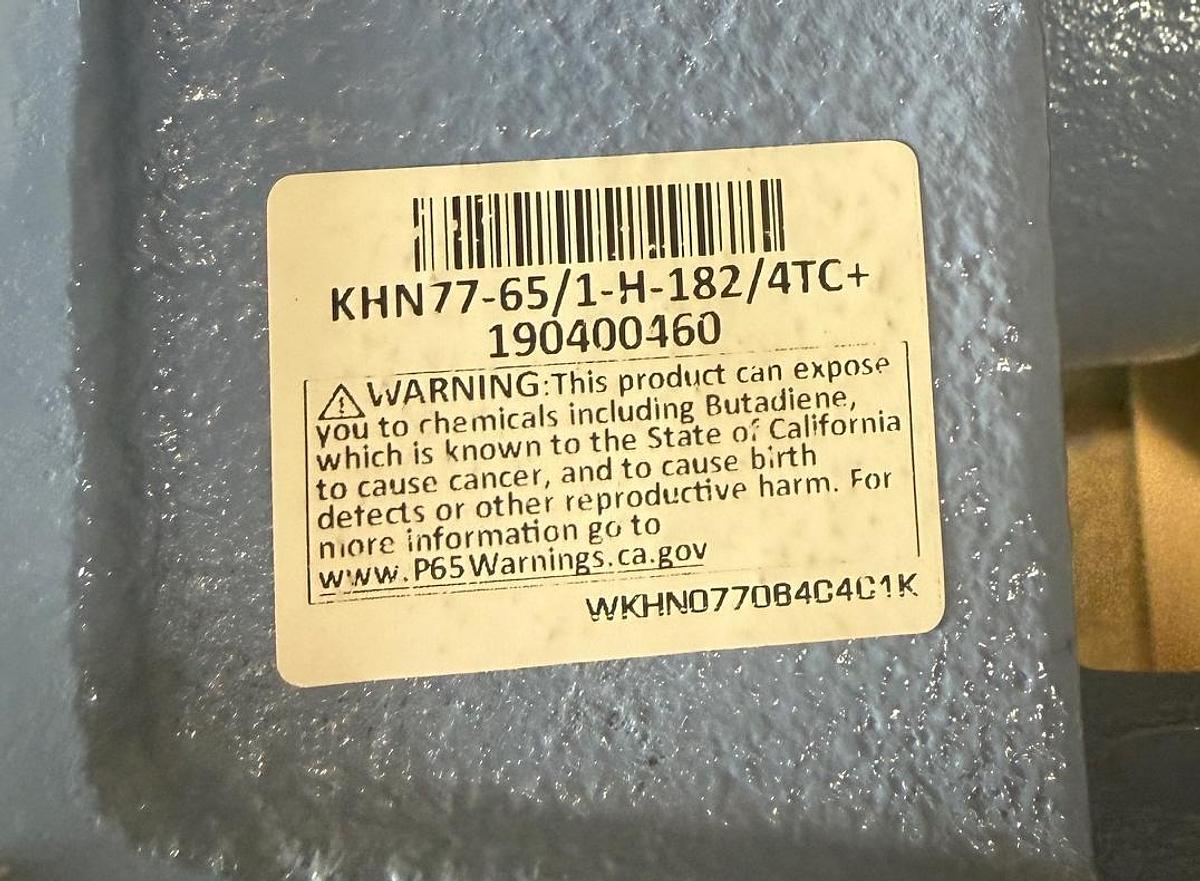

MODEL KHN77-65/1-H-182/4TC

SIZE 77 RATIO 64 TO 1

INPUT OF 1750 RPM OUTPUT OF 27 RPM

Maximum Input Power: 6.56 HP

Maximum Output Torque: 13,710 in-lbs

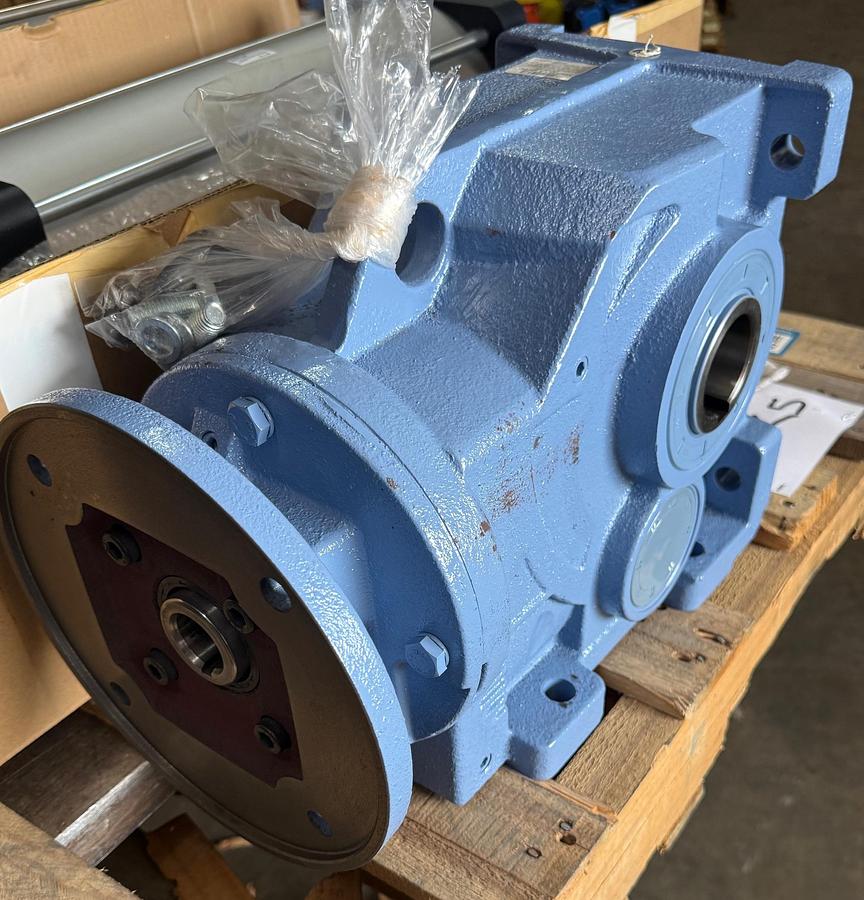

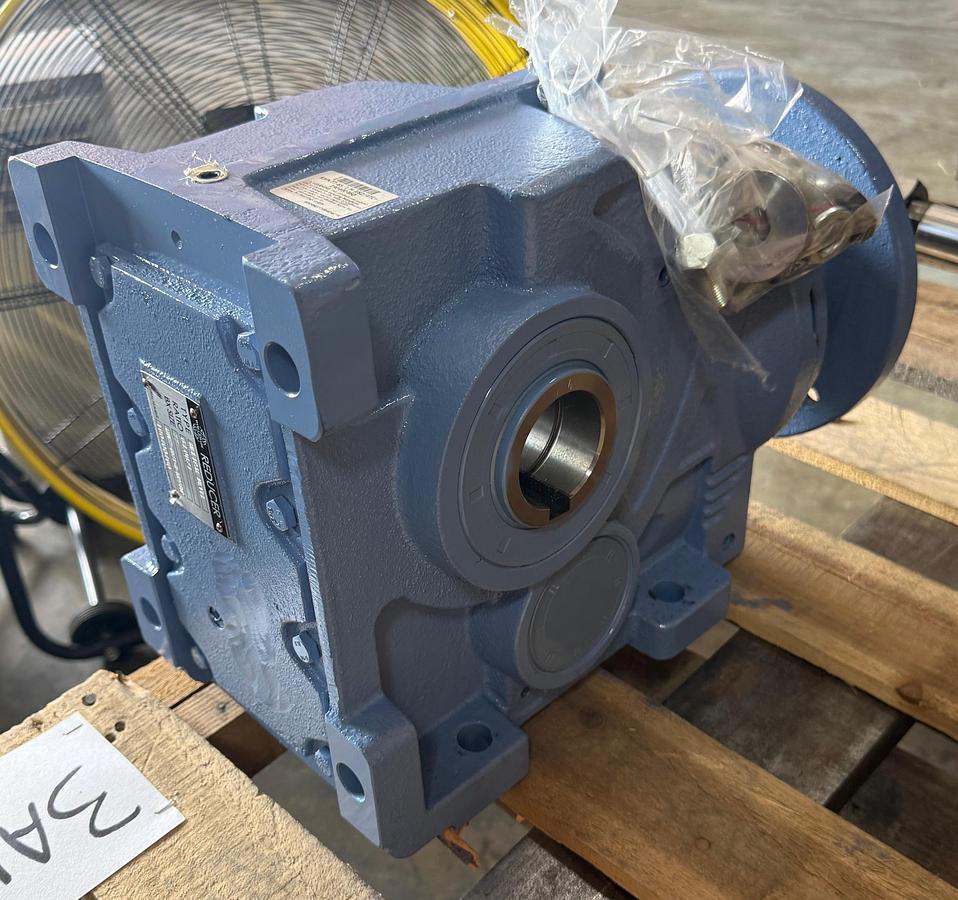

The Worldwide Reducer Gear Reducer, offering model KHN77-65/1-H-182/4TC, is designed to deliver efficiency and strength for various industrial applications. This model features a size 77 and an impressive gear ratio of 64 to 1, which facilitates significant torque multiplication. With its origins in the USA, you can trust in its manufacturing quality and reliability. The WorldWide Electric KHN77-65/1-H-182/4TC is a heavy-duty, cast-iron helical-bevel gear reducer belonging to the KHN series, designed for high torque and smooth speed reduction in demanding industrial applications like conveyors, mixers, and agitators. This specific unit features a nominal ratio of 65:1 (with an actual ratio of 64.06:1) and a box size of 77.

• Key SpecificationsManufacturer: WorldWide Electric Corporation

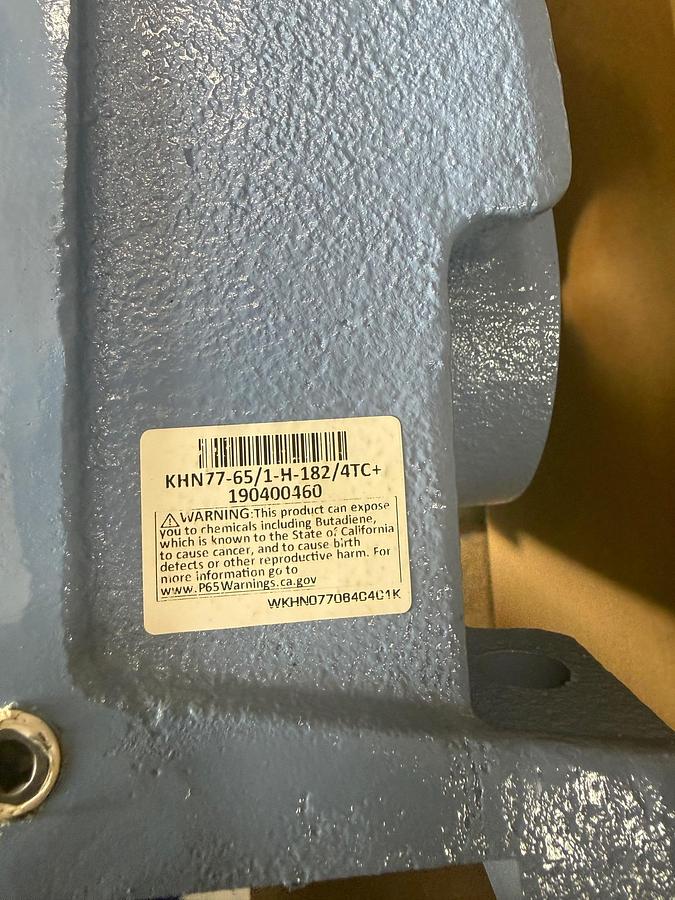

• Model Number: KHN77-65/1-H-182/4TC
• Gear Type: Helical-Bevel (3 Gear Stages)
• Mounting Style: Foot-mounted
• Nominal Ratio: 65:1
• Actual Ratio: 64.06:1
• Box Size: 77

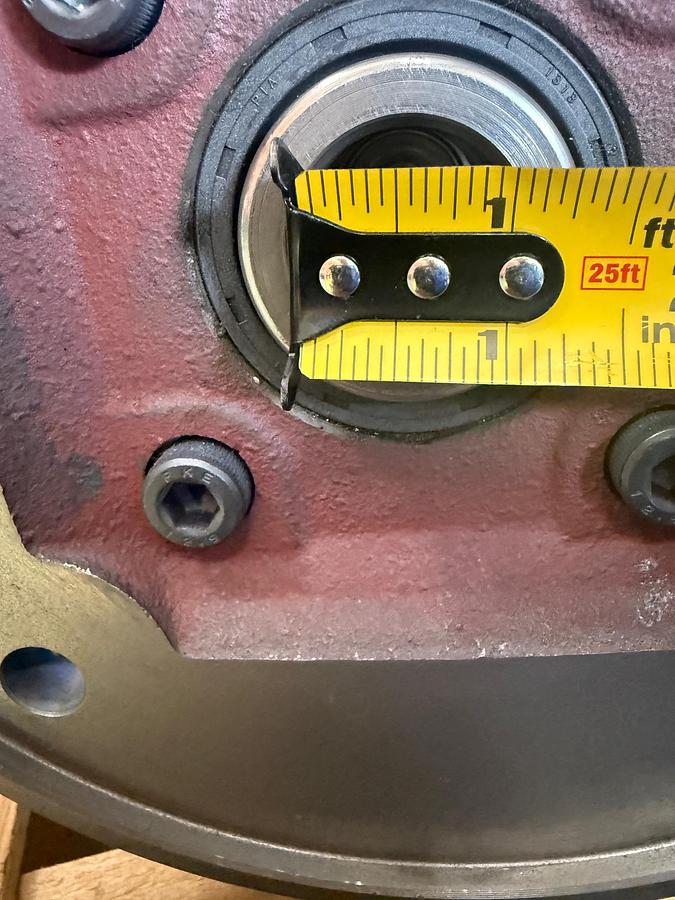

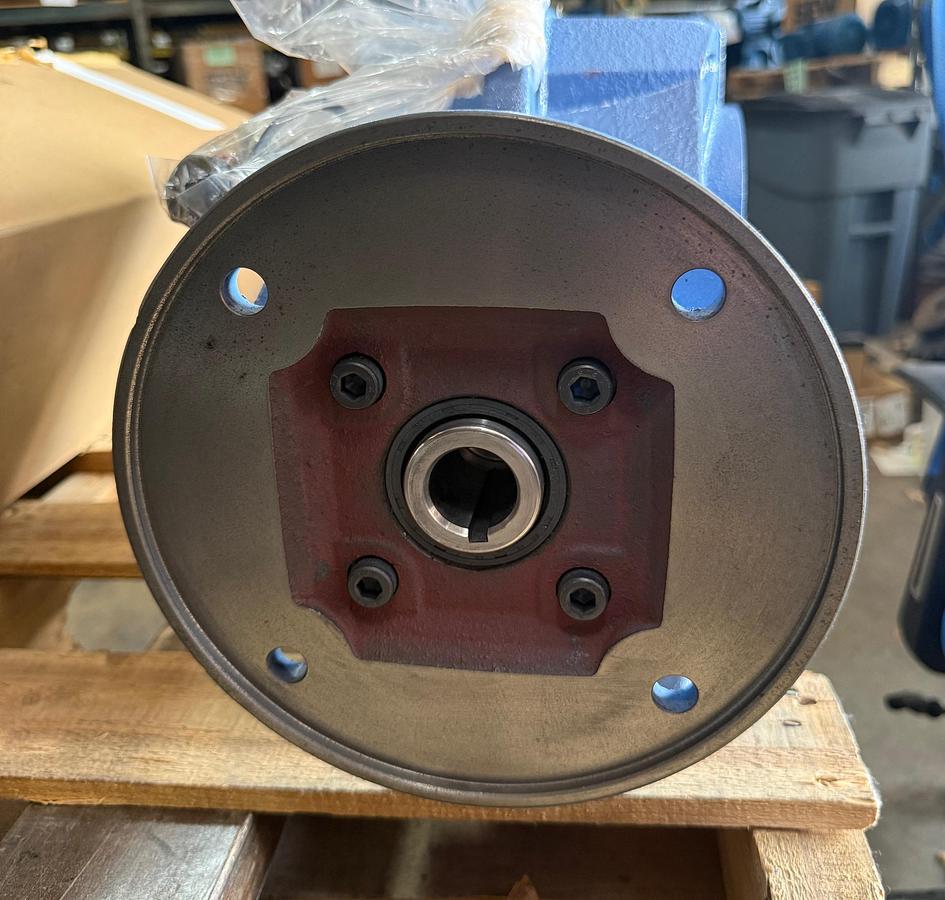

• Motor Frame Compatibility: NEMA 182/4TC (Quill style input flange
• Performance Specs:Output Speed: 27 RPM (assuming a standard 1,750 RPM motor input)
• Maximum Input Power: 6.56 HP
• Maximum Output Torque: 13,710 in-lbs

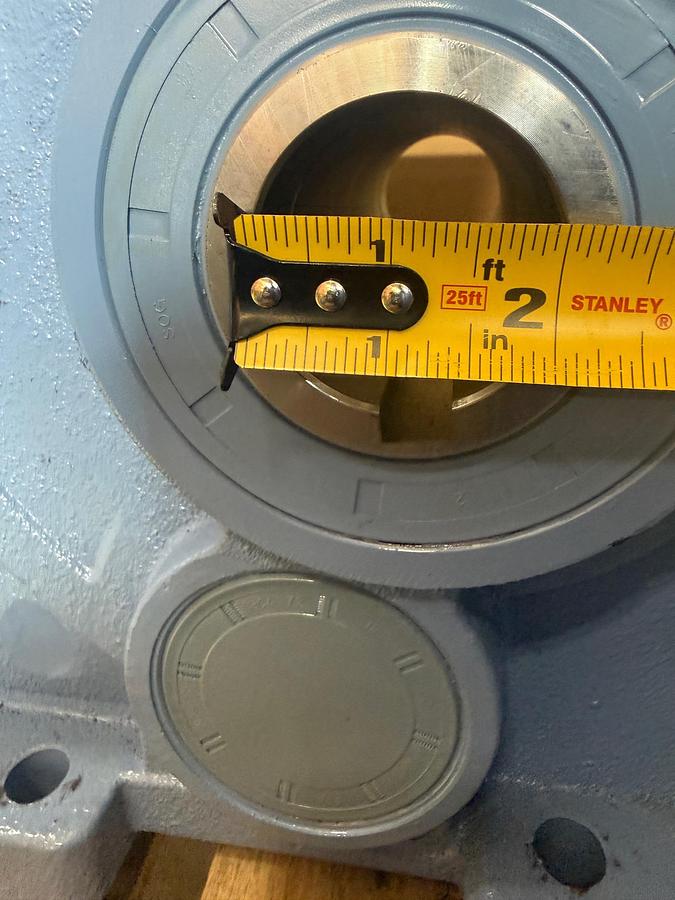

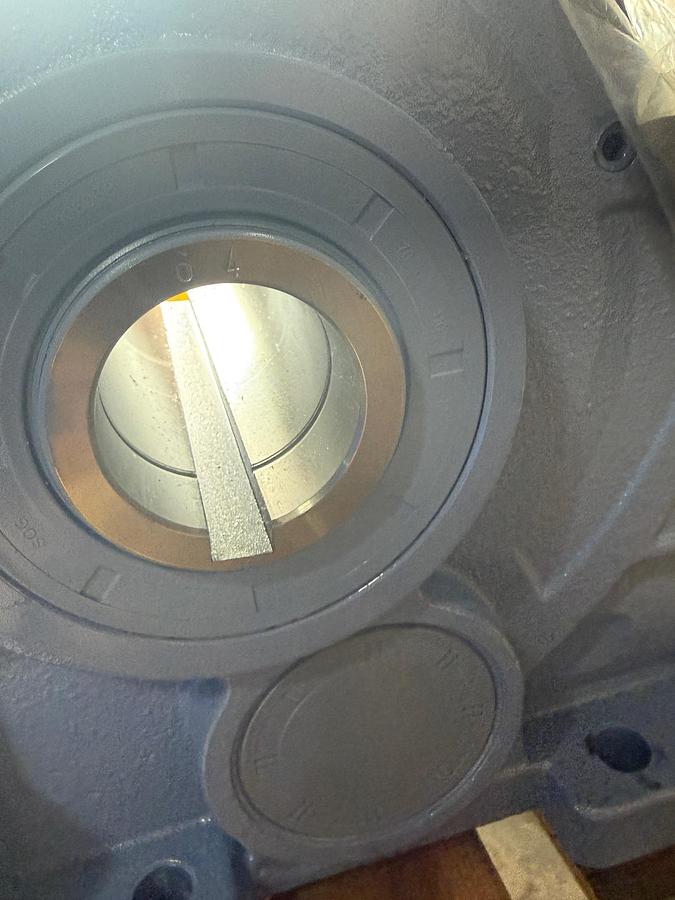

• Housing Material: Heavy-duty cast iron with a hollow output bore
• Lubrication: Factory pre-filled with HD320 mineral oil (optimized for standard M1 mounting)
• Weight: Approximately 132 lbs

• Features and CompatibilityUniversal NEMA Input: The NEMA quill style flange eliminates the need for flexible couplings, enabling seamless drop-in retrofits with standard C-Face electric motors
• Interchangeability: This series provides dimensional drop-in compatibility with most major European helical-bevel gear reducer brands.
• Smooth Operation: Features high-efficiency precision ground gears and ball bearings on both input and output shafts to ensure quieter rotation and minimized vibration.
